DG509BEN-T1-GE4 footprint, schematic symbol and 3D model by Vishay

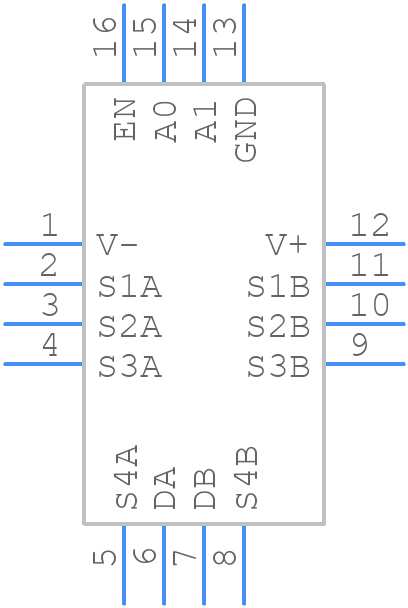

Symbol

click to zoom

PCB Footprints

DG509BEN-T1-GE4 - Vishay PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - Thin miniQFN16

click to zoom

3D Models

DG509BEN-T1-GE4 - Vishay - 3D model - Quad Flat No-Lead - Thin miniQFN16

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DG509BEN-T1-GE4
Part Number DG509BEN-T1-GE4
Manufacturer Vishay
Pin Count 16
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - Thin miniQFN16
Released Date Jul 2, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DG509BEN-T1-GE4 Details

Manufacturer Part Number:
DG509BEN-T1-GE4
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
1.80 X 2.60 MM, HALOGEN FREE AND ROHS COMPLIANT, MINIQFN-16
HTS Code:
8542.39.00.60
Manufacturer:
Vishay Intertechnologies
YTEOL:
6.69
Analog IC - Other Type:
SINGLE-ENDED MULTIPLEXER
JESD-30 Code:
R-XQCC-N16
Length:
2.6 mm
Neg Supply Voltage-Max (Vsup):
-20 V
Neg Supply Voltage-Min (Vsup):
-5 V
Neg Supply Voltage-Nom (Vsup):
-15 V
Number of Channels:
4
Number of Functions:
2
Number of Terminals:
16
Off-state Isolation-Nom:
81 dB
On-state Resistance Match-Nom:
10 Ω
On-state Resistance-Max (Ron):
380 Ω
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Code:
VQCCN
Package Equivalence Code:
LCC16,.07X.1,16
Package Shape:
RECTANGULAR
Package Style:
CHIP CARRIER, VERY THIN PROFILE
Qualification Status:
Not Qualified
Seated Height-Max:
0.8 mm
Signal Current-Max:
0.03 A
Supply Current-Max (Isup):
0.6 mA
Supply Voltage-Max (Vsup):
20 V
Supply Voltage-Min (Vsup):
5 V
Supply Voltage-Nom (Vsup):
15 V
Surface Mount:
YES
Switch-off Time-Max:
300 ns
Switch-on Time-Max:
340 ns
Switching:
BREAK-BEFORE-MAKE
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Form:
NO LEAD
Terminal Pitch:
0.4 mm
Terminal Position:
QUAD
Width:
1.8 mm

DG509BEN-T1-GE4 Frequently Asked Questions (FAQs)

The recommended PCB footprint for the DG509BEN-T1-GE4 is a standard SOIC-8 package with a 1.27mm pitch. A recommended land pattern is available in the Vishay Intertechnologies' application note AN81142.
To ensure the DG509BEN-T1-GE4 operates within its recommended operating conditions, ensure the supply voltage is within the specified range of 1.65V to 5.5V, and the junction temperature is within the range of -40°C to 125°C. Additionally, follow proper PCB design and layout guidelines to minimize thermal resistance and ensure adequate heat dissipation.
The maximum allowable current through the DG509BEN-T1-GE4's switches is 100mA per channel. Exceeding this current may lead to premature device failure or reduced lifespan.
To minimize power consumption when using the DG509BEN-T1-GE4, ensure that the device is in the correct power-down mode when not in use. Additionally, consider using a low-power mode or reducing the switching frequency to minimize power consumption.
The recommended ESD protection for the DG509BEN-T1-GE4 is to follow the IEC 61000-4-2 standard, which recommends a minimum of 2kV contact discharge and 1kV air discharge. Additionally, consider using ESD protection devices such as TVS diodes or ESD arrays in the PCB design.
