The recommended PCB footprint for the DGD05473FNQ-7 can be found in the Diodes Incorporated's package outline drawing, which is usually available on their website or through their customer support. The footprint includes the recommended land pattern, solder mask, and silk screen dimensions.
To ensure reliability in high-temperature applications, follow the recommended operating conditions, derate the device according to the thermal derating curve, and ensure proper thermal management, such as using a heat sink or thermal interface material. Additionally, consider using a thermally enhanced package or a device with a higher junction-to-ambient thermal resistance.
The DGD05473FNQ-7 has built-in ESD protection, but it's still important to follow standard ESD handling precautions, such as using an ESD wrist strap, mat, or workstation, and storing the devices in anti-static packaging. Avoid touching the device's pins or exposing it to static electricity during handling.
The DGD05473FNQ-7 is designed for high-frequency applications, but its performance may degrade at very high frequencies. Check the device's frequency response and impedance characteristics in the datasheet to ensure it meets your application's requirements. You may also need to consider additional components, such as bypass capacitors or impedance matching networks, to optimize the device's performance.
To troubleshoot issues with the DGD05473FNQ-7, start by reviewing the datasheet and application notes to ensure correct usage. Check the device's pinout, voltage, and current ratings, and verify that the device is properly soldered and connected. Use oscilloscopes or logic analyzers to debug signal integrity issues, and consult Diodes Incorporated's technical support or application notes for specific guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGD05473FNQ-7 Overview

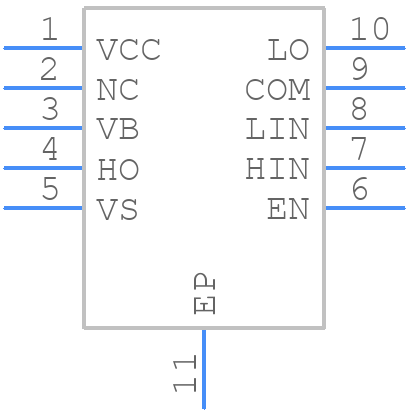

Use the download button to access the DGD05473FNQ-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGD05,
or try a keyword search, such as MOSFET Drivers
