DGD2113S16-13 - Diodes Incorporated

Description: Driver 2.5A 2-OUT High and Low Side 16-Pin SO T/R

Download DGD2113S16-13 Model

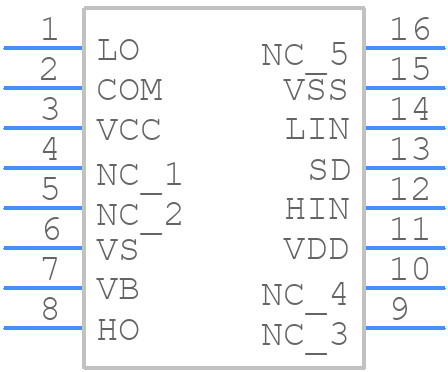

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DGD2113S16-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-16 (Type TH)
click to zoom
3D Models
DGD2113S16-13 - Diodes Incorporated  - 3D model - Small Outline Packages - SO-16 (Type TH)
click to zoom

DGD2113S16-13 Details

  • Manufacturer Part Number:

    DGD2113S16-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Interface IC Type:

    HALF BRIDGE BASED IGBT/MOSFET DRIVER

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    MATTE TIN

DGD2113S16-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern around the thermal pad is suggested. Additionally, a solid ground plane on the bottom layer can help with heat spreading.
  • Ensure that the device is operated within the recommended voltage and current ratings. Also, consider the power dissipation and thermal management to prevent overheating. A careful PCB design and layout can help minimize thermal gradients and ensure reliable operation.
  • The DGD2113S16-13 has built-in ESD protection, but handling precautions are still necessary. Use an anti-static wrist strap or mat, and handle the device by the body or pins, avoiding direct contact with the die. Store the device in an anti-static bag or tube when not in use.
  • The DGD2113S16-13 is a commercial-grade device, but Diodes Incorporated offers other variants with enhanced reliability and automotive-grade options. Consult with the manufacturer or a qualified representative to determine the suitability of this device for your specific application.
  • Follow the recommended soldering profile: peak temperature 240°C, time above 217°C 60s, and time above 183°C 150s. For rework, use a low-temperature soldering iron (< 350°C) and avoid applying excessive force or heat to the device.
