DGH105Q2R7 - Cornell Dubilier

Description: Supercapacitors / Ultracapacitors 1F 2.7V +30%/-10% Radial

Download DGH105Q2R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DGH105Q2R7 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

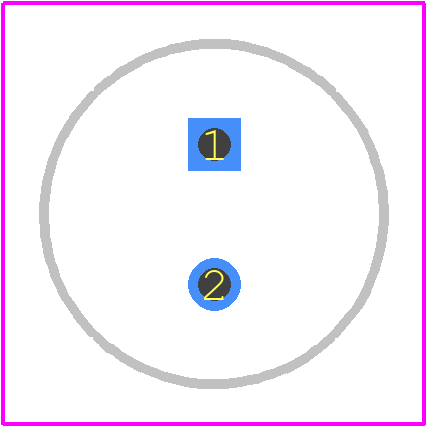

DGH105Q2R7 - Cornell Dubilier PCB footprint - Other - Other - DGH105Q2R7
click to zoom
3D Models
DGH105Q2R7 - Cornell Dubilier - 3D model - Other - DGH105Q2R7
click to zoom

DGH105Q2R7 Details

  • Manufacturer Part Number:

    DGH105Q2R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    7

  • Capacitance:

    1000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e3

  • Length:

    14 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    Radial

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Reference Standard:

    UL

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    3.5 mm

  • Terminal Shape:

    WIRE

DGH105Q2R7 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the DGH105Q2R7 is 260°C (500°F) for 10 seconds or less.
  • Yes, the DGH105Q2R7 is designed for high-reliability applications and meets the requirements of MIL-PRF-123 and MIL-PRF-39006.
  • The derating curve for the DGH105Q2R7 capacitor is typically 1.25% per 1000 feet above sea level, but it's recommended to consult the manufacturer's application notes for specific guidance.
  • Yes, the DGH105Q2R7 capacitor is designed to withstand high-vibration environments and meets the requirements of MIL-STD-202, Method 204.
  • The shelf life of the DGH105Q2R7 capacitor is typically 2 years from the date of manufacture, but it's recommended to follow the manufacturer's storage and handling guidelines to ensure optimal performance.
