The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to ensure the capacitor's reliability and performance.
Yes, the DGH107Q2R7 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its performance and reliability in demanding applications.
The DGH107Q2R7 is designed to operate up to 80,000 feet (24,384 meters) above sea level. However, it's essential to derate the capacitor's voltage and current ratings according to the manufacturer's guidelines to ensure reliable operation in high-altitude environments.
The DGH107Q2R7 has a maximum operating temperature of 125°C (257°F). While it can operate in high-temperature environments, it's crucial to derate the capacitor's voltage and current ratings according to the manufacturer's guidelines to ensure reliable operation and prevent premature failure.
The recommended storage condition for the DGH107Q2R7 is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and relative humidity below 70%. Avoid storing the capacitors in direct sunlight, high-temperature environments, or areas with high humidity.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGH107Q2R7 Overview

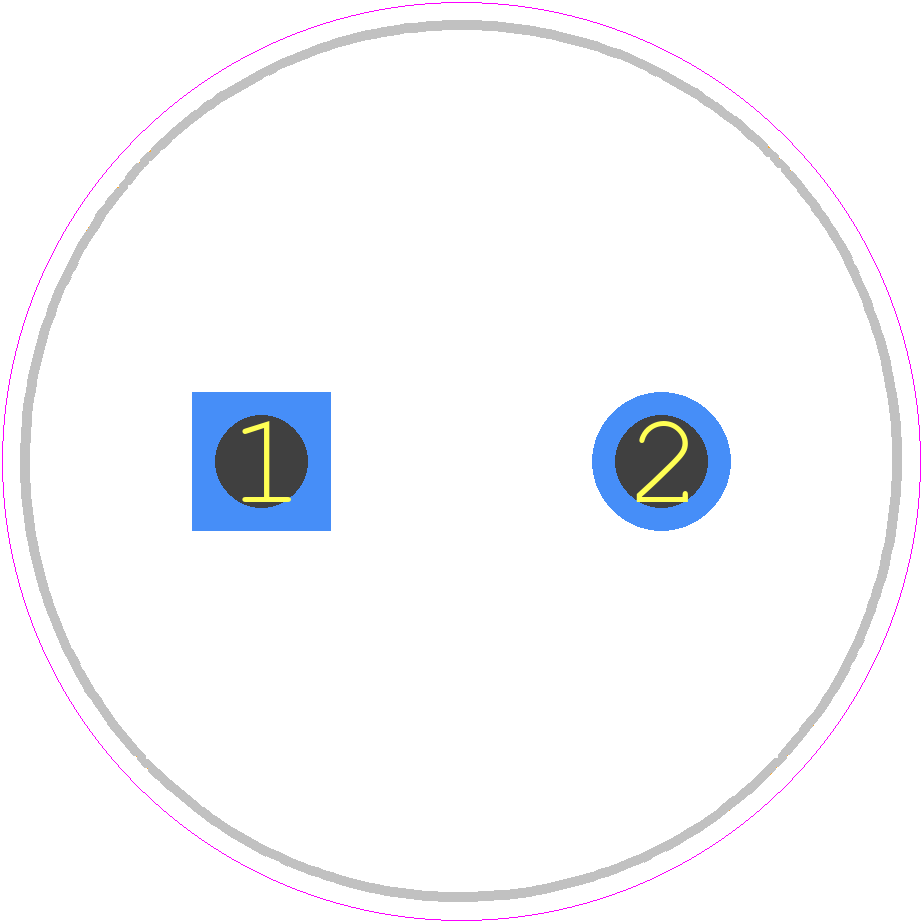

Use the download button to access the DGH107Q2R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGH10,
or try a keyword search, such as Electric Double Layer Capacitors
