The recommended soldering temperature is 260°C (500°F) with a maximum dwell time of 10 seconds. It's essential to follow the soldering profile recommended by Cornell Dubilier to ensure the capacitor's reliability and performance.
Yes, the DGH206Q2R7 is designed to withstand high-vibration environments. It meets the vibration test requirements of IEC 60068-2-6, which ensures its performance and reliability in demanding applications.
The ESR of the DGH206Q2R7 is not explicitly stated in the datasheet, but it can be estimated to be around 0.02 ohms based on the capacitor's construction and materials. However, it's recommended to consult with Cornell Dubilier or perform your own measurements for a more accurate value.
Yes, the DGH206Q2R7 is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, making it suitable for use in environmentally friendly and sustainable designs.
It's recommended to store the DGH206Q2R7 in a dry, cool place with a temperature range of 10°C to 30°C (50°F to 86°F) and relative humidity below 70%. Avoid exposing the capacitors to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DGH206Q2R7 Overview

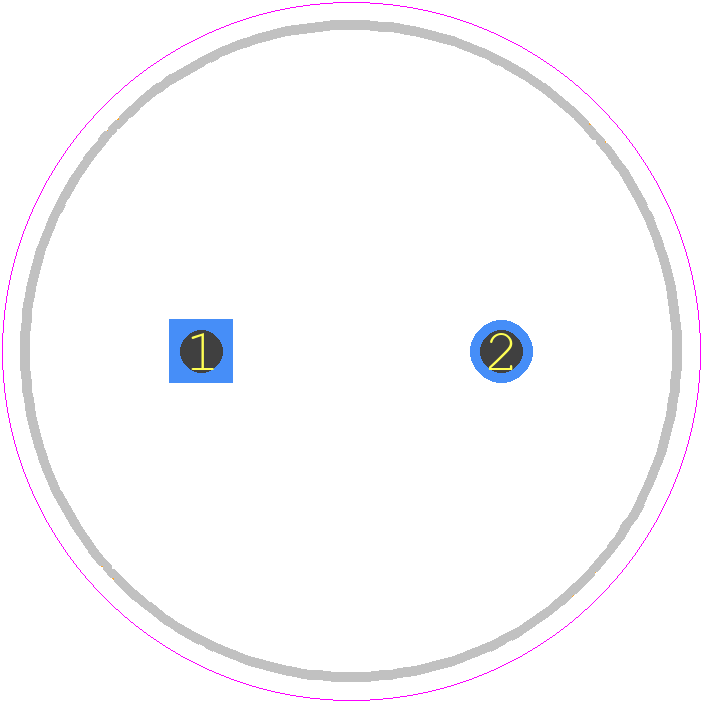

Use the download button to access the DGH206Q2R7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DGH20,
or try a keyword search, such as Electric Double Layer Capacitors
