DGH207Q2R7 - Cornell Dubilier

Description: Supercapacitors / Ultracapacitors 200F 2.7V 30%/-10% Snap-In

Download DGH207Q2R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DGH207Q2R7 - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

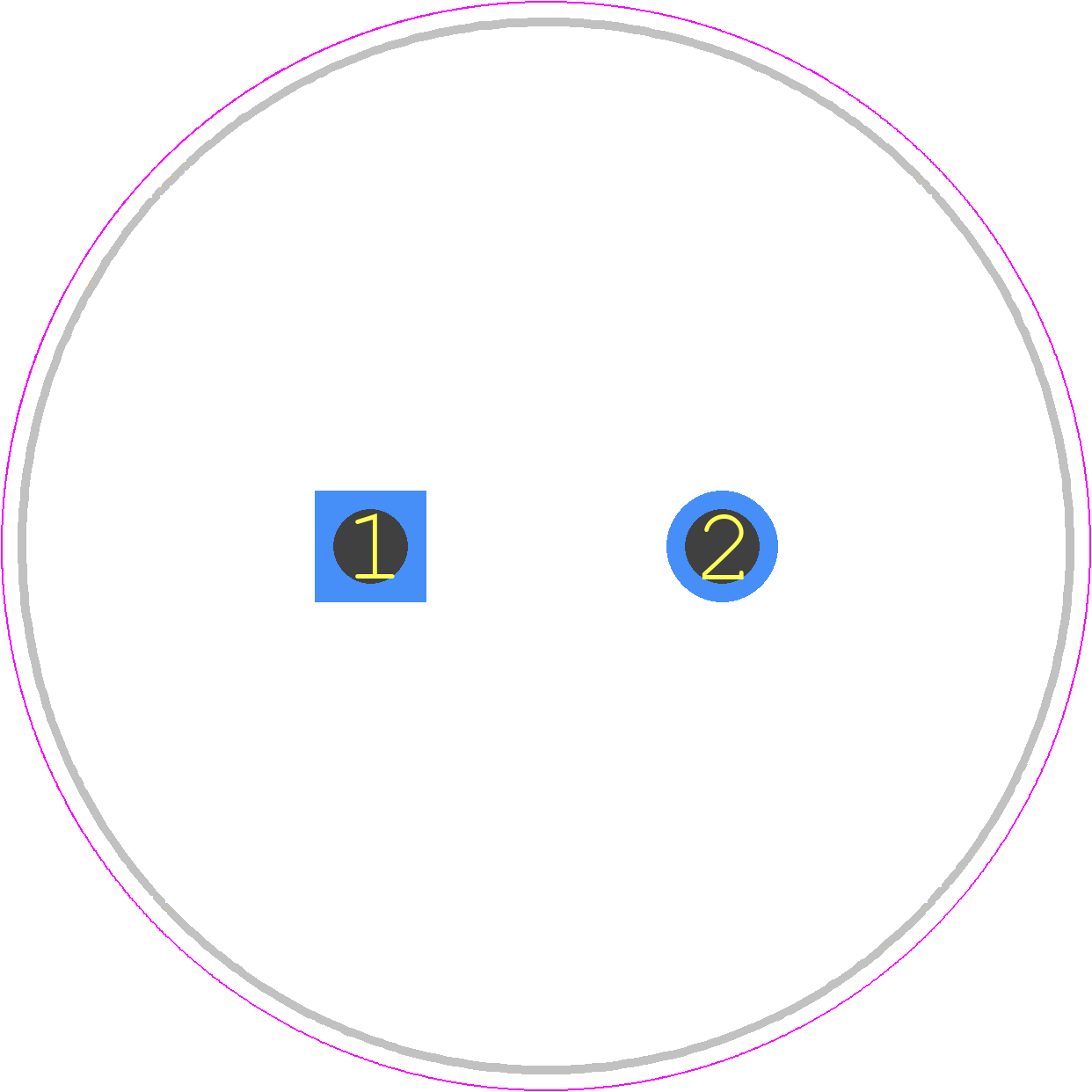

DGH207Q2R7 - Cornell Dubilier PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 30X50pin pitch 10
click to zoom
3D Models
DGH207Q2R7 - Cornell Dubilier - 3D model - Capacitor, Polarized Radial Diameter - 30X50pin pitch 10
click to zoom

DGH207Q2R7 Details

  • Manufacturer Part Number:

    DGH207Q2R7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.29.00.40

  • Manufacturer:

    Cornell Dubilier Electronics Inc

  • YTEOL:

    7

  • Capacitance:

    200000000 µF

  • Capacitor Type:

    ELECTRIC DOUBLE LAYER CAPACITOR

  • Diameter:

    30 mm

  • Dielectric Material:

    ACTIVATED CARBON

  • JESD-609 Code:

    e3

  • Length:

    50 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Snap-in

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    2.7 V

  • Reference Standard:

    UL

  • Surface Mount:

    NO

  • Terminal Finish:

    Tin (Sn)

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

DGH207Q2R7 Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 5 seconds. It's essential to follow the manufacturer's soldering guidelines to prevent damage to the capacitor.
  • Yes, the DGH207Q2R7 is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the capacitor to prevent mechanical stress and damage.
  • The DGH207Q2R7 is designed to operate in humid environments, but it's essential to follow the manufacturer's guidelines for humidity ratings and ensure proper sealing and encapsulation to prevent moisture ingress.
  • Yes, the DGH207Q2R7 is designed to handle high-dc-bias voltage. However, it's crucial to ensure that the voltage rating is not exceeded, and the capacitor is properly derated to prevent premature failure.
  • The recommended storage condition for the DGH207Q2R7 is in a dry, cool place with a temperature range of -20°C to 40°C (-4°F to 104°F) and humidity below 70%. Avoid storing the capacitors in direct sunlight or near heat sources.
