DHS50B12 - Cosel

Description: Cosel PCB Mount 50.4W Isolated DC-DC Converter, Vin 200 → 400 V dc, I/O isolation 3 kV ac, 500 V dc

Download DHS50B12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

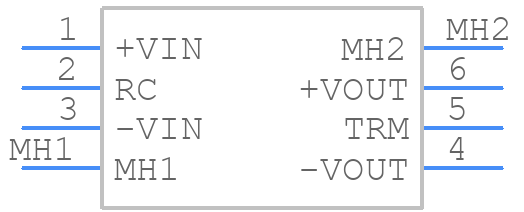

DHS50B12 - Cosel - PCB symbol
click to zoom
PCB Footprints

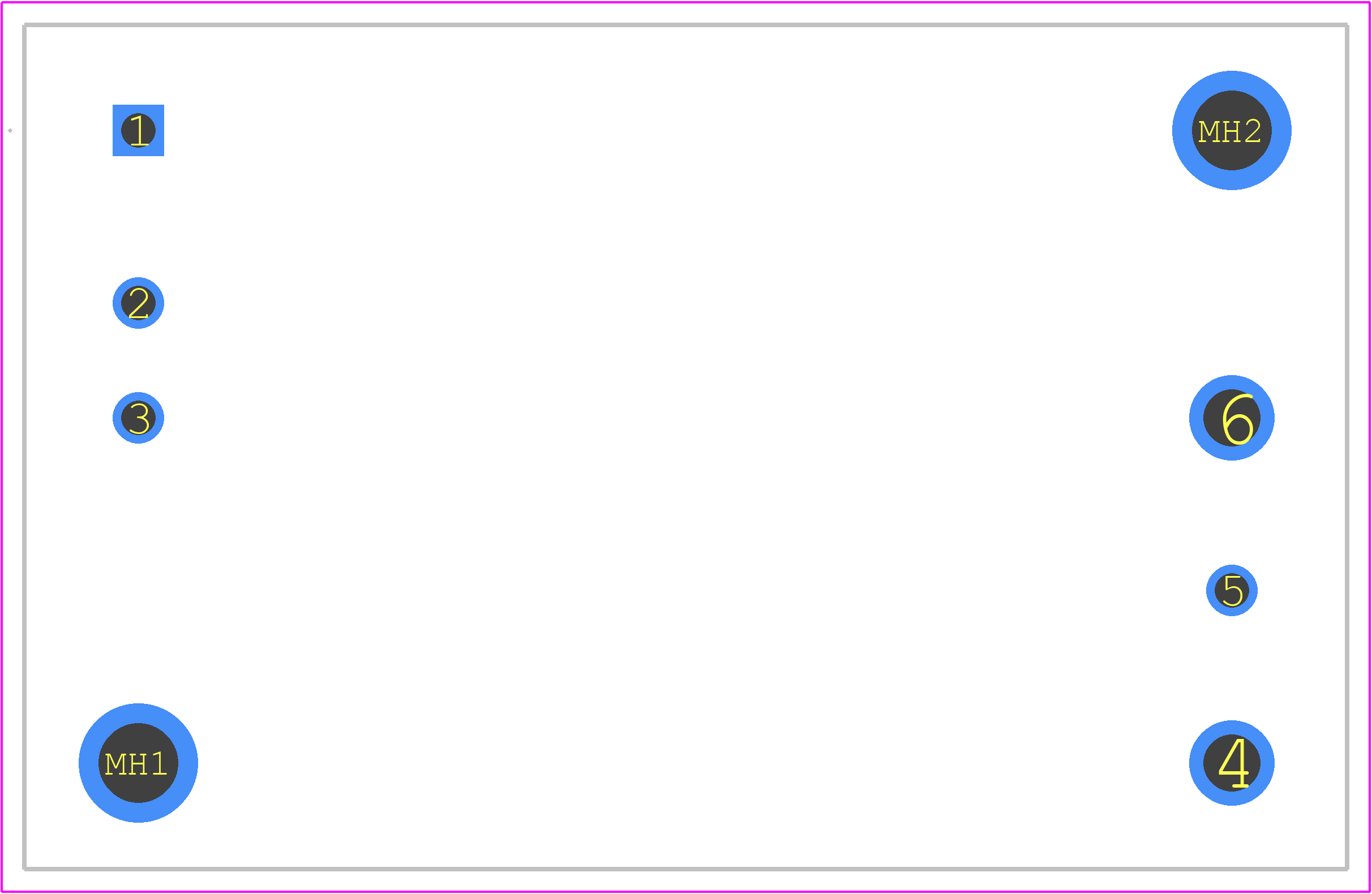

DHS50B12 - Cosel PCB footprint - Other - Other - DHS50B12-1
click to zoom
3D Models
DHS50B12 - Cosel - 3D model - Other - DHS50B12-1
click to zoom

DHS50B12 Details

  • Manufacturer Part Number:

    DHS50B12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cosel USA Inc

  • YTEOL:

    3

  • Additional Feature:

    LG-MAX; WD-MAX

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    400 V

  • Input Voltage-Min:

    200 V

  • Input Voltage-Nom:

    280 V

  • JESD-30 Code:

    R-XDMA-P6

  • Length:

    58.4 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Output Voltage-Max:

    13.2 V

  • Output Voltage-Min:

    10.8 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    13.2 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    15

  • Total Power Output-Max:

    50.4 W

  • Trim/Adjustable Output:

    YES

  • Width:

    37.3 mm

DHS50B12 Frequently Asked Questions (FAQs)

  • Cosel recommends a PCB layout with a large copper area under the module, connected to a solid ground plane, to ensure good heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable start-up and operation, Cosel recommends using a soft-start circuit or a ramp-up circuit to limit the inrush current and voltage stress on the output capacitors.
  • The maximum allowed output capacitance for the DHS50B12 is 2200uF. Exceeding this value may cause instability or oscillation in the output voltage.
  • Yes, the DHS50B12 is designed to operate up to 5000 meters (16,400 ft) above sea level. However, derating of the output power may be necessary to ensure reliable operation.
  • Cosel recommends using a TVS (Transient Voltage Suppressor) diode or a surge protector at the input to protect the module from voltage surges and spikes.
