The recommended PCB layout involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended thermal pad connection.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the device away from high-frequency sources, use a common-mode choke, and follow proper PCB layout and grounding techniques.
The reliability and failure rate expectations depend on various factors, including operating conditions, quality of the device, and manufacturing process. Consult the manufacturer's reliability report and perform accelerated life testing to estimate the failure rate.
The DIO6605BFN8 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. Consult the datasheet for specific temperature ratings and derating guidelines.
Use a systematic approach to troubleshoot issues, starting with visual inspection, then checking power supply and input signals, and finally using oscilloscopes and logic analyzers to debug the device's behavior.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DIO6605BFN8 Overview

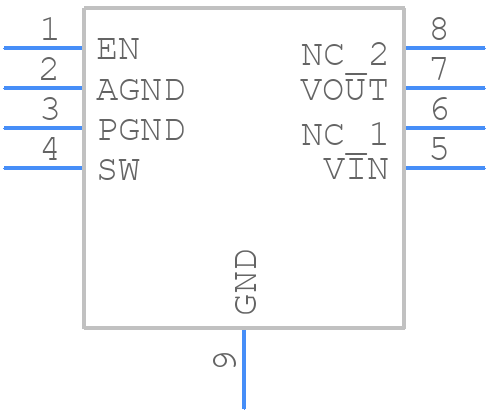

Use the download button to access the DIO6605BFN8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DIO66,
or try a keyword search, such as Switching Regulator or Controllers
