Panasonic provides a recommended PCB layout and land pattern in their application notes or relay mounting instructions. It's essential to follow these guidelines to ensure proper relay operation and prevent overheating or electrical noise issues.
To handle the inrush current, consider adding a soft-start circuit or an NTC thermistor in series with the relay coil to limit the inrush current. Additionally, ensure the power supply can handle the inrush current, and consider adding a capacitor to absorb the energy.
While the datasheet specifies an operating temperature range, it's essential to consider the relay's performance in extreme environments. Panasonic provides additional information on temperature derating and performance in their application notes or technical support resources.
To ensure EMC, follow proper PCB layout and shielding techniques, and consider adding EMC filters or chokes to the relay's coil and contacts. Additionally, ensure the relay is properly grounded and follow relevant EMC standards and regulations.
The relay's lifespan depends on various factors, including operating conditions, switching frequency, and load type. Panasonic provides expected lifespan information in their datasheet or application notes. Consider this when designing your system, and plan for relay replacement or maintenance accordingly.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DK1a1b-L2-12V Overview

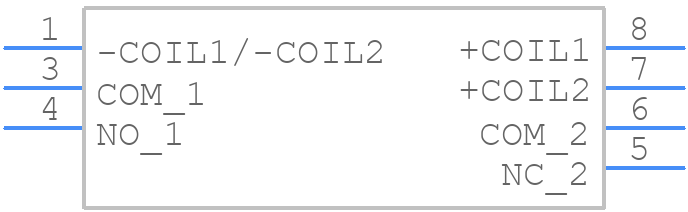

Use the download button to access the DK1a1b-L2-12V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DK1a1,
or try a keyword search, such as Power/Signal Relays
