Panasonic provides a recommended PCB layout and land pattern in their application notes or design guides. It's essential to follow these guidelines to ensure proper relay operation and to prevent overheating or electrical noise issues.
The DK2A-L2-3V relay has a coil voltage rating of 3V and a coil current rating of 20mA. Ensure that your design provides a stable voltage supply and current limiting to prevent overheating or damage to the relay. You may need to add a voltage regulator, current limiting resistor, or a relay driver IC depending on your application.
The DK2A-L2-3V relay has an operating temperature range of -40°C to 85°C. As the temperature increases, the relay's coil resistance and contact resistance may increase, affecting its performance. Ensure that your design takes into account the operating temperature range and provides adequate cooling or heat dissipation measures if necessary.
To ensure reliable operation, it's essential to keep the relay's contacts clean and free from contamination. Use a clean and dry environment during assembly, and consider using a relay with a sealed or encapsulated design to prevent ingress of contaminants. You may also need to add a contact protection circuit or use a relay with built-in contact protection features.
The DK2A-L2-3V relay has an expected lifespan of 100,000 cycles or more, depending on the operating conditions. Consider the relay's lifespan when designing your application, especially if it's intended for high-reliability or long-term use. You may need to implement relay redundancy, monitoring, or replacement strategies to ensure continued operation.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DK2a-L2-3V Overview

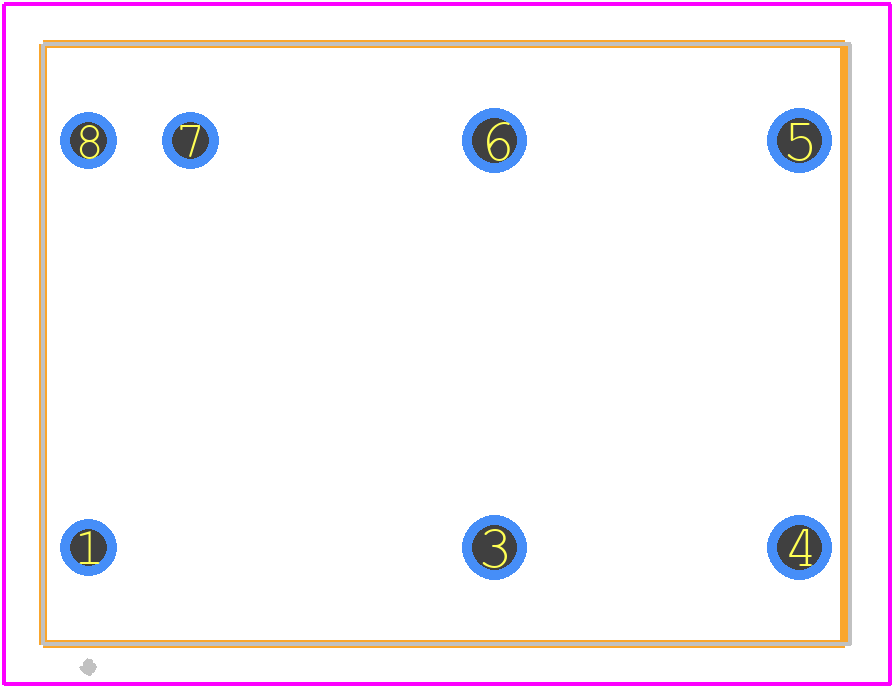

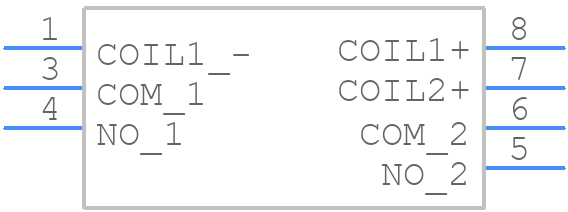

Use the download button to access the DK2a-L2-3V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DK2a-,
or try a keyword search, such as Power/Signal Relays
