DL1-156R - ITT CANNON

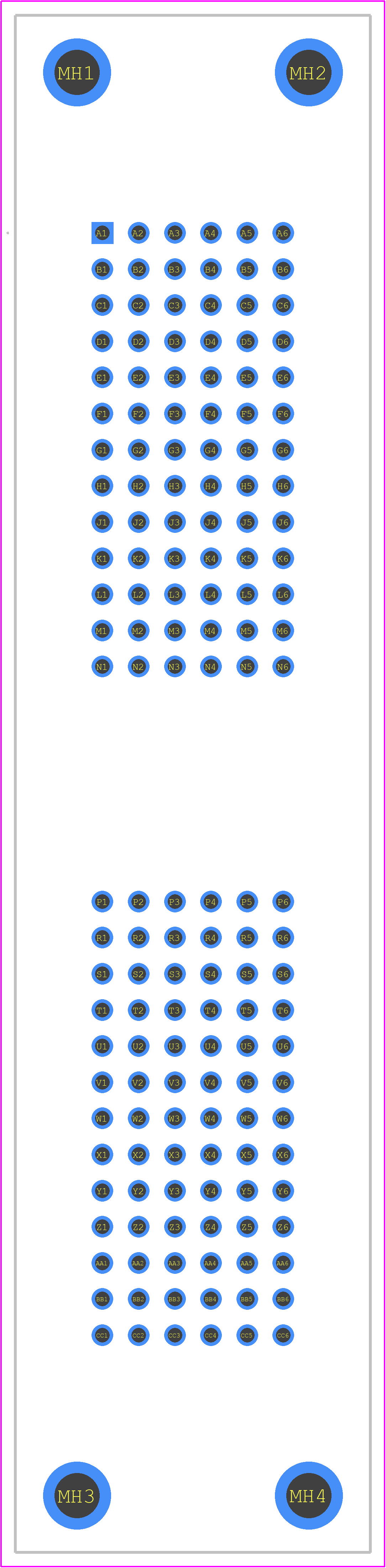

DL1-156R Details

• Manufacturer Part Number:

  DL1-156R

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  ITT Interconnect Solutions

• YTEOL:

  7.15

• Additional Feature:

  COMPATIBLE CONTACTS:030-2494-001; 110238-0486, POLARIZATION AVAILABLE

• Body Breadth:

  0.98 inch

• Body Depth:

  0.8 inch

• Body Length:

  4.255 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  RACK AND PANEL CONNECTOR

• Contact Design:

  PREASSEM CONN

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Finish Termination:

  NOT APPLICABLE

• Contact Gender:

  FEMALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  15 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1200VAC V

• Durability:

  10000 Cycles

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  5000000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYETHYLENE

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.1 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Type:

  PANEL

• Number of Rows Loaded:

  6

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Plating Thickness:

  50u inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Signal):

  5 A

• Reference Standard:

  UL

• Termination Type:

  CRIMP

• Total Number of Contacts:

  156

• UL Flammability Code:

  94V-1

• Wire Size-Max:

  18 AWG

• Wire Size-Min:

  42 AWG

• Withdrawl Force-Min:

  ZIF N
