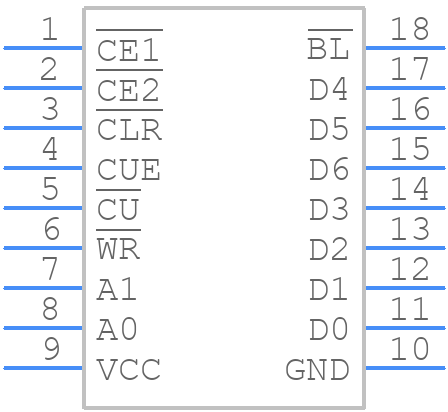

Symbol

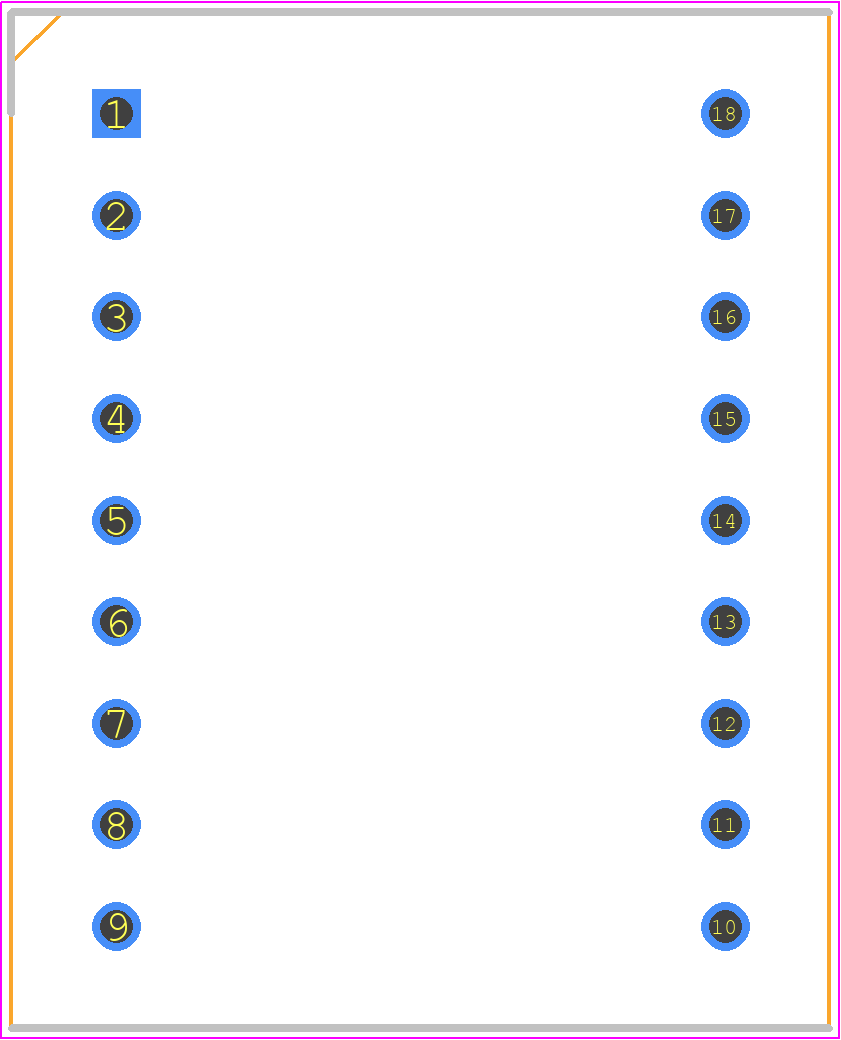

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for DL2416T
- Part Number DL2416T
- Manufacturer SIEMENS
- Pin Count 18
- Part Category Display
- Package Category Dual-In-Line Sockets
- Footprint Name Dual-In-Line Sockets - DL2416T
- Released Date Oct 1, 2017
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DL2416T Details
-
Manufacturer Part Number:
DL2416T
-
Manufacturer:
Siemens Semiconductors
Trust Checks
Community Provided
System Verified
Community Approved
DL2416T Overview
Use the download button to access the DL2416T schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like DL241,
or try a keyword search, such as LED Displays
