DLC2/6SGD footprint, schematic symbol and 3D model by Kingbright

Symbol

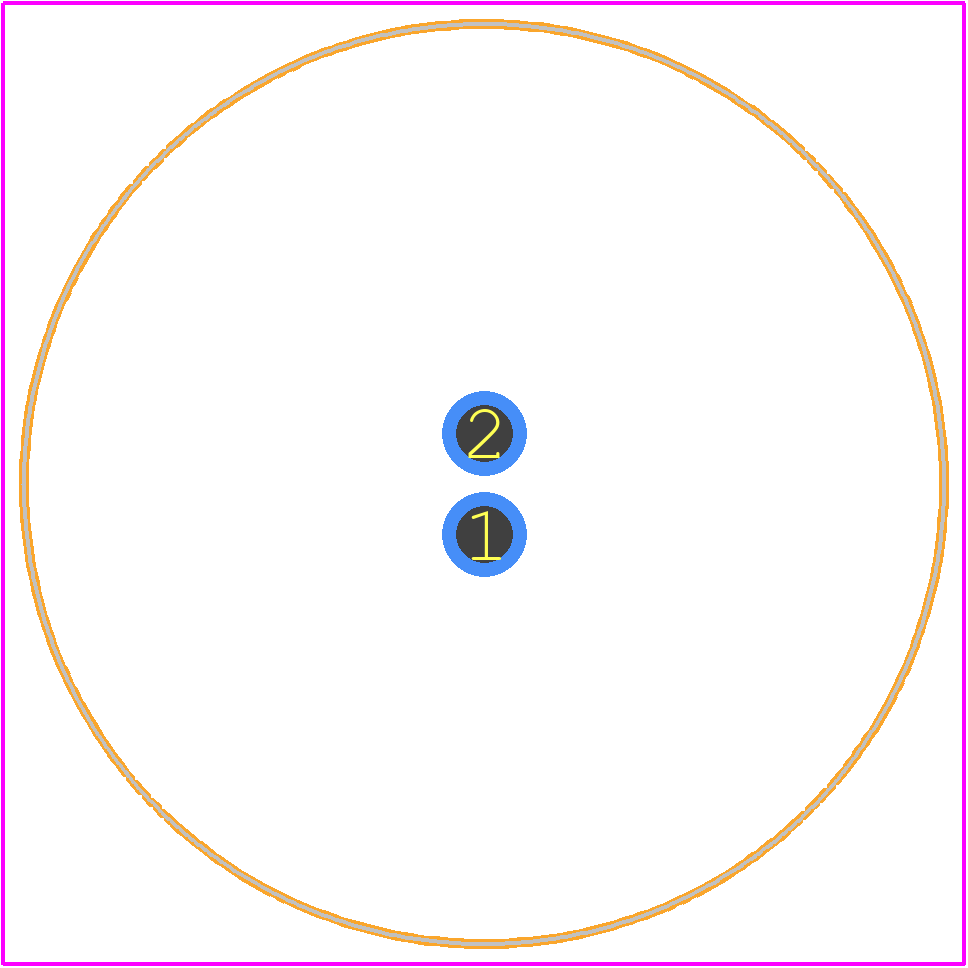

PCB Footprints

3D Models

DLC2/6SGD Details

The recommended storage temperature for DLC2/6SGD is -20°C to 40°C, with a relative humidity of 60% or less.
While DLC2/6SGD is suitable for indoor use, it's not recommended for outdoor applications due to its limited environmental rating (IP40). For outdoor use, consider using a more ruggedized LED component with a higher IP rating.
The maximum soldering temperature for DLC2/6SGD is 260°C for 3 seconds. Exceeding this temperature may damage the LED or affect its performance.
To prevent electrostatic discharge (ESD) damage, handle DLC2/6SGD components with anti-static wrist straps, mats, or other ESD protection devices. Avoid touching the component's leads or pins with bare hands.
The recommended reflow soldering profile for DLC2/6SGD is a peak temperature of 240°C to 250°C, with a dwell time of 30 seconds to 60 seconds. Consult the Kingbright application note for more detailed information.

Expert Contribution

System Verified

Community Approved

Use the download button to access the DLC2/6SGD schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like DLC2/, or try a keyword search, such as Visible LEDs
