DLH2XS8AK53X - CONEC

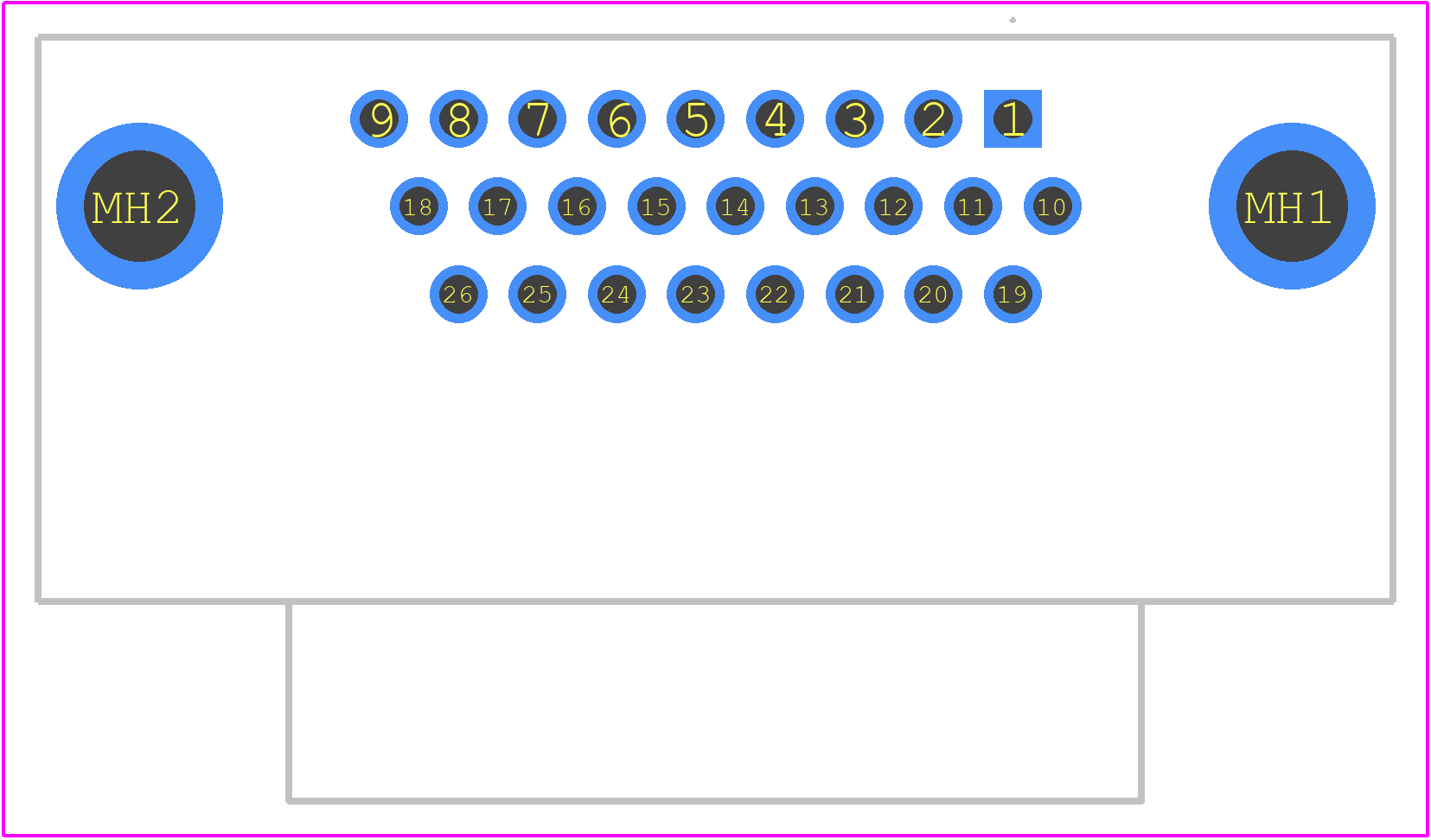

DLH2XS8AK53X Details

• Manufacturer Part Number:

  DLH2XS8AK53X

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  Conec Corporation

• YTEOL:

  8

• Additional Feature:

  IP20

• Board Mounting Option:

  HOLE 0.123

• Body Breadth:

  0.509 inch

• Body Depth:

  0.646 inch

• Body Length:

  1.556 inch

• Body/Shell Style:

  SOCKET

• Connector Type:

  D SUBMINIATURE CONNECTOR

• Contact Design:

  STAMPED

• Contact Finish Termination:

  Gold (Au) over Nickel (Ni)

• Contact Gender:

  FEMALE

• Contact Pattern:

  STAGGERED

• Contact Style:

  RND PIN-SKT

• Dielectric Withstanding Voltage:

  1000V V

• Durability:

  50 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• Insertion Force-Max:

  50 N

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYBUTYLENE TEREPHTALATE

• Mating Contact Pitch:

  0.09 inch

• Mating Contact Row Spacing:

  0.078 inch

• Mating Information:

  DLH2XP8AK53X

• Mixed Contacts:

  NO

• Mounting Option 1:

  #4-40 UNC

• Mounting Option 2:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  3

• Number of Rows Loaded:

  3

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.54 mm

• Rated Current (Signal):

  3 A

• Reference Standard:

  CSA; UL

• Shell Finish:

  TIN

• Shell Material:

  STEEL

• Shell Size:

  2/A

• Terminal Length:

  0.13 inch

• Terminal Pitch:

  2.29 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  26

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  50 N
