DLP-R272-8-F footprint, schematic symbol and 3D model by ITT CANNON

Symbol

click to zoom

PCB Footprints

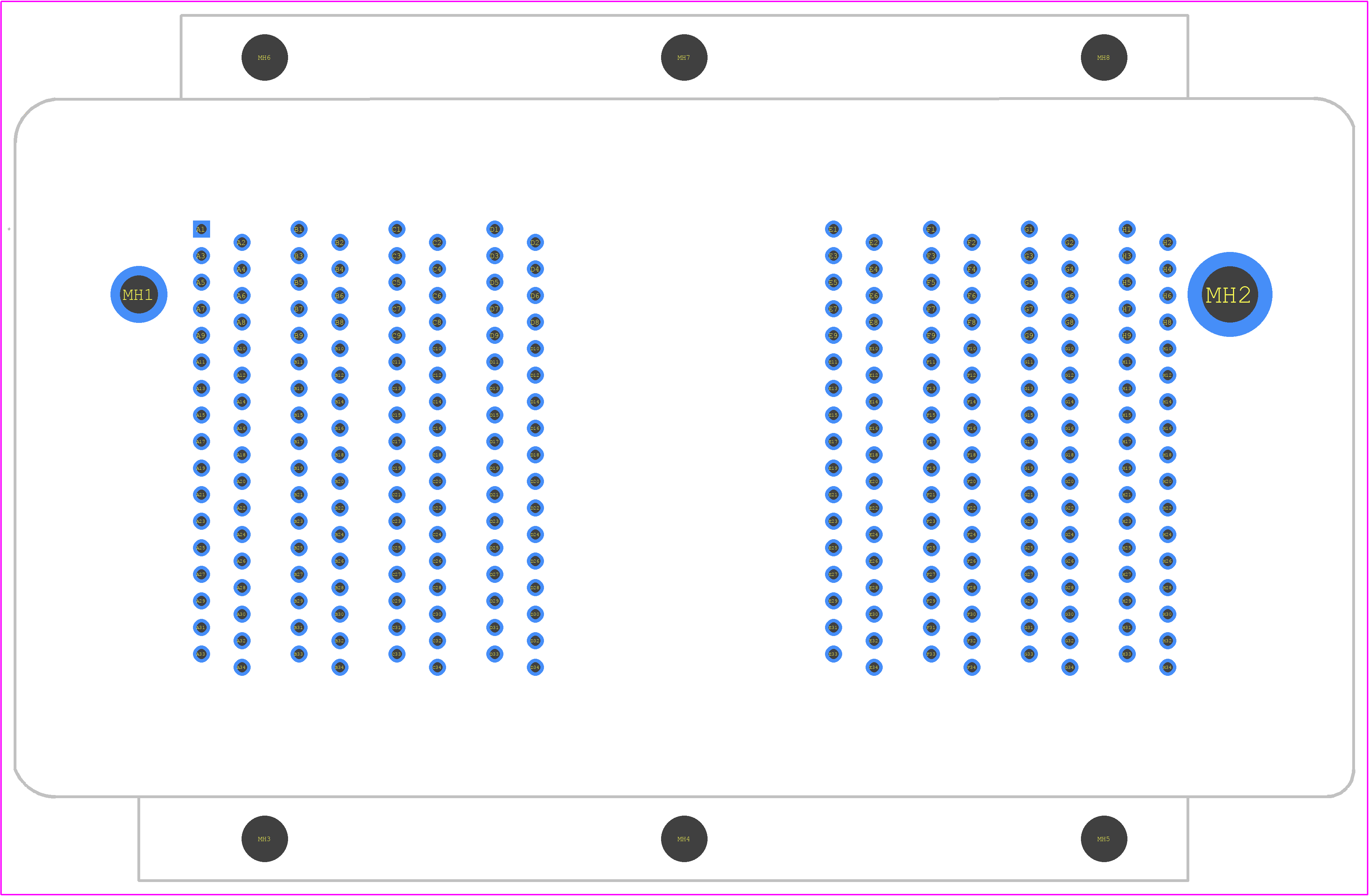

DLP-R272-8-F - ITT CANNON PCB footprint - Other - Other - DLP-R272-8-F-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DLP-R272-8-F
Part Number DLP-R272-8-F
Manufacturer ITT CANNON
Pin Count 274
Part Category Connector
Package Category Other
Footprint Name Other - DLP-R272-8-F-2
Released Date Feb 5, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DLP-R272-8-F Details

Manufacturer Part Number:
DLP-R272-8-F
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
ITT Interconnect Solutions
YTEOL:
8
Body Breadth:
2.437 inch
Body Depth:
0.527 inch
Body Length:
3.768 inch
Body/Shell Style:
RECEPTACLE
Connector Type:
RACK AND PANEL CONNECTOR
Contact Gender:
FEMALE
Empty Shell:
NO
Filter Feature:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Rated Current (Signal):
0.5 A
Shell Finish:
NICKEL
Shell Material:
ALUMINUM ALLOY
Termination Type:
SOLDER
Total Number of Contacts:
272

DLP-R272-8-F Frequently Asked Questions (FAQs)

The recommended torque value for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
Yes, the DLP-R272-8-F is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
Yes, the DLP-R272-8-F has a IP67 rating, making it suitable for outdoor use and able to withstand exposure to moisture and dust.
The maximum operating temperature range for the DLP-R272-8-F is -40°C to 125°C (-40°F to 257°F).
No, the DLP-R272-8-F is designed for use with wire sizes AWG 20-24. Using a larger wire size may compromise the connector's performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

DLP-R272-8-F Overview

Use the download button to access the DLP-R272-8-F schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DLP-R, or try a keyword search, such as Multiway Rack and Panel Connectors

Parts related to DLP-R272-8-F

Showing 0 results
