DLP660TEAAFYG - Texas Instruments

Description: Display Drivers & Controllers 0.66-inch 4K UHD 2XLVDS DLP® digital micromirror device (DMD) 350-CPGA 0 to 70

Download DLP660TEAAFYG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLP660TEAAFYG - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

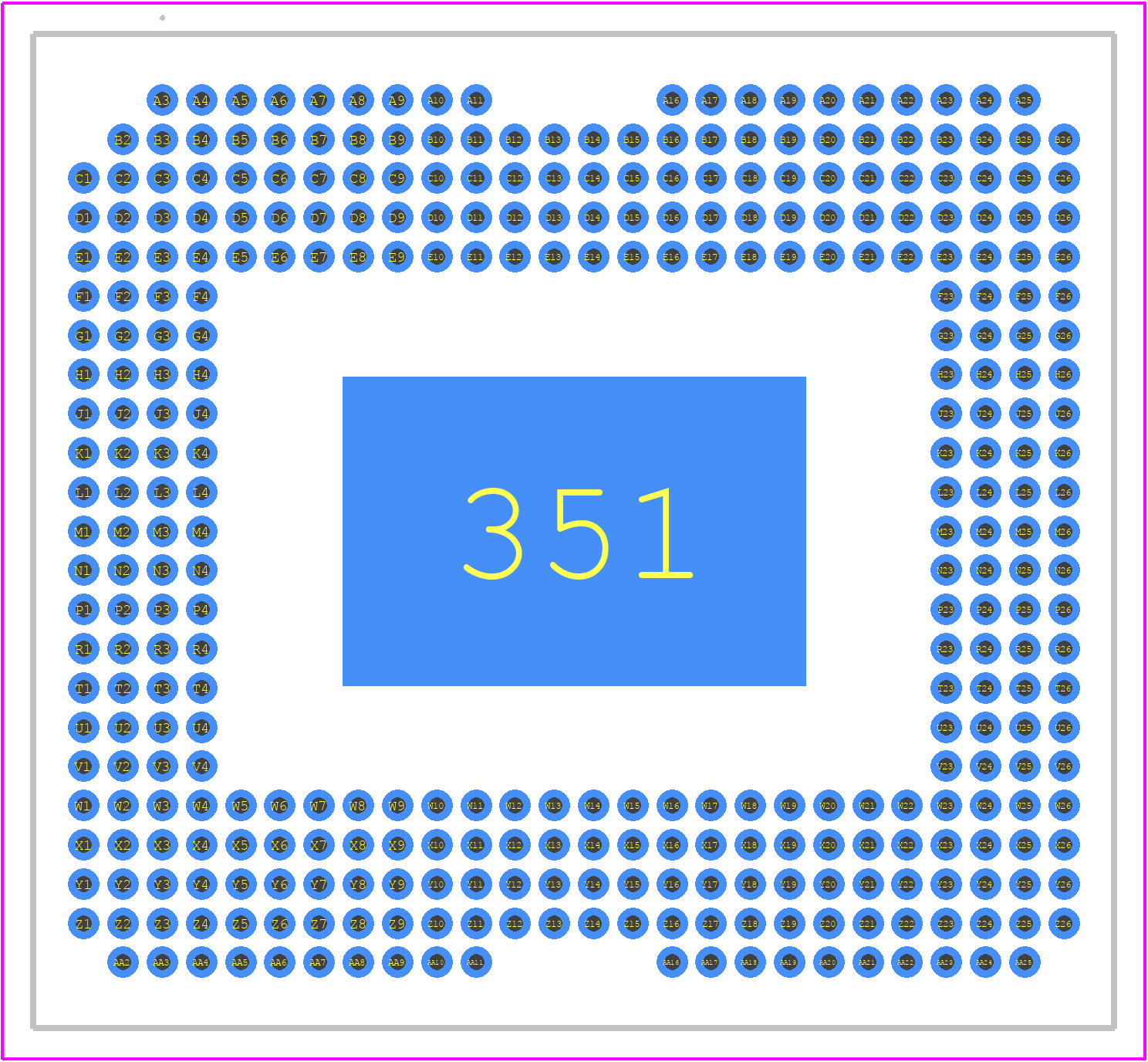

DLP660TEAAFYG - Texas Instruments PCB footprint - Other - Other - DLP660TEAAFYG-7
click to zoom
3D Models
DLP660TEAAFYG - Texas Instruments - 3D model - Other - DLP660TEAAFYG-7
click to zoom

DLP660TEAAFYG Details

  • Manufacturer Part Number:

    DLP660TEAAFYG

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    R-CPGA-P350

  • Length:

    35 mm

  • Number of Functions:

    1

  • Number of Terminals:

    350

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    CERAMIC, METAL-SEALED COFIRED

  • Package Code:

    SPGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, SHRINK PITCH

  • Seated Height-Max:

    5.083 mm

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Surface Mount:

    NO

  • Temperature Grade:

    OTHER

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    PERPENDICULAR

  • Width:

    32 mm

DLP660TEAAFYG Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in the DLP660TEAAFYG User's Guide (SLUU525) and the DLP660TEAAFYG Thermal Design Guide (SLUU526). These guides provide detailed information on how to design a PCB and manage thermal dissipation to ensure optimal performance and reliability.
  • The DLP660TEAAFYG's firmware can be programmed using the DLPC350 firmware development kit, which includes a GUI-based programming tool and a software development kit (SDK). The SDK provides a set of APIs and documentation to help developers create custom firmware applications.
  • The DLP660TEAAFYG is rated for operation from -20°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. It's recommended to operate the device within the specified temperature range to ensure optimal performance and reliability.
  • While the DLP660TEAAFYG is designed to work with TI's DLPC350 controller, it's possible to use it with a non-TI controller. However, this would require custom firmware development and may require additional hardware and software modifications. It's recommended to consult with TI's support team or a qualified engineer to determine the feasibility of using a non-TI controller.
  • The typical power consumption of the DLP660TEAAFYG varies depending on the operating mode and the specific application. However, according to the datasheet, the typical power consumption is around 1.2W in standby mode and up to 3.5W in active mode. It's recommended to consult the datasheet and the user's guide for more detailed information on power consumption.
