DLPA004-7 - Diodes Incorporated

Description: DATA BUS TRANSIENT SUPPRESSOR

Download DLPA004-7 Model

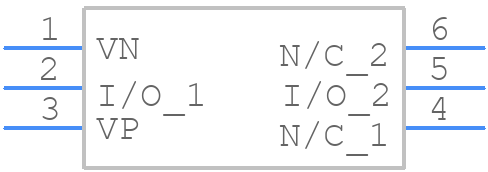

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DLPA004-7 - Diodes Incorporated PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363-ren1
click to zoom
3D Models
DLPA004-7 - Diodes Incorporated  - 3D model - SOT23 (6-Pin) - SOT-363-ren1
click to zoom

DLPA004-7 Details

  • Manufacturer Part Number:

    DLPA004-7

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.70

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    0

  • Additional Feature:

    HIGH RELIABILITY

  • Application:

    FAST RECOVERY

  • Breakdown Voltage-Min:

    85 V

  • Configuration:

    COMPLEX

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.25 V

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    1 A

  • Number of Elements:

    4

  • Number of Phases:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Output Current-Max:

    0.2 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Power Dissipation-Max:

    0.2 W

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    85 V

  • Reverse Current-Max:

    50 µA

  • Reverse Recovery Time-Max:

    3 µs

  • Reverse Test Voltage:

    70 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30
