DLPC120ZXSRQ1 - Texas Instruments

Description: https://www.ti.com/lit/gpn/dlpc120-q1

Download DLPC120ZXSRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC120ZXSRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

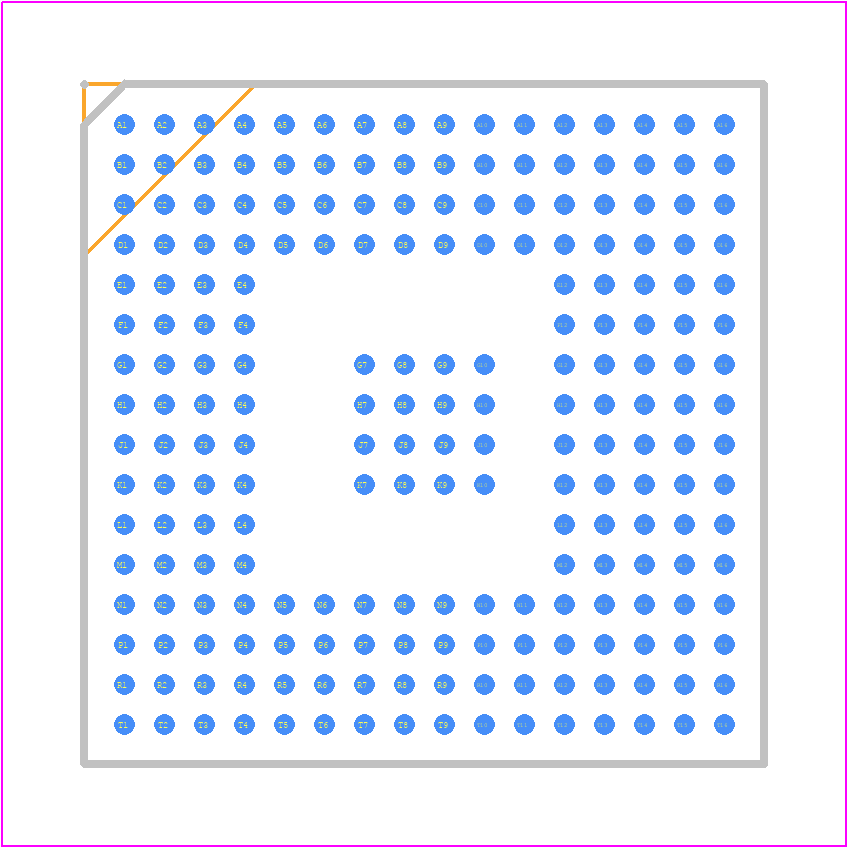

DLPC120ZXSRQ1 - Texas Instruments PCB footprint - BGA - BGA - DLPC120ZXSRQ1*1
click to zoom
3D Models
DLPC120ZXSRQ1 - Texas Instruments - 3D model - BGA - DLPC120ZXSRQ1*1
click to zoom

DLPC120ZXSRQ1 Details

  • Manufacturer Part Number:

    DLPC120ZXSRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Date Of Intro:

    2017-11-08

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Address Bus Width:

    13

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    16 MHz

  • Display Configuration:

    864 X 480 PIXELS

  • External Data Bus Width:

    15

  • JESD-30 Code:

    S-PBGA-B216

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    216

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    NFBGA

  • Package Equivalence Code:

    BGA216,16X16,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.66 mm

  • Supply Current-Max:

    186 mA

  • Supply Voltage-Max:

    1.26 V

  • Supply Voltage-Min:

    1.14 V

  • Supply Voltage-Nom:

    1.2 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC120ZXSRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in the DLPC120 Application Note (SLAU522). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The DLPC120ZXSRQ1 is highly configurable through its SPI interface. You can use the DLPC120 Configuration Tool (available on the TI website) to generate configuration files for different display resolutions and interfaces, such as HDMI, DisplayPort, or LVDS.
  • The DLPC120ZXSRQ1 supports clock frequencies up to 150 MHz. However, the actual clock frequency may be limited by the specific application and display interface used.
  • The DLPC120ZXSRQ1 has a complex power management scheme. You can use the Power Management Guide (SLAU523) and the DLPC120 Power Sequencing Application Note (SLAU524) to understand the power-up and power-down sequences, as well as the recommended power management strategies.
  • The DLPC120ZXSRQ1 is a sensitive device and requires proper ESD protection and handling. You should follow the ESD Handling and Protection Guide (SLAU525) to ensure the device is not damaged during handling, storage, or assembly.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLPC120ZXSRQ1 Overview

Use the download button to access the DLPC120ZXSRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPC1, or try a keyword search, such as Display Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
