DLPC150ZEZ - Texas Instruments

Description: Digital Controller for the DLP2010NIR DMD

Download DLPC150ZEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC150ZEZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

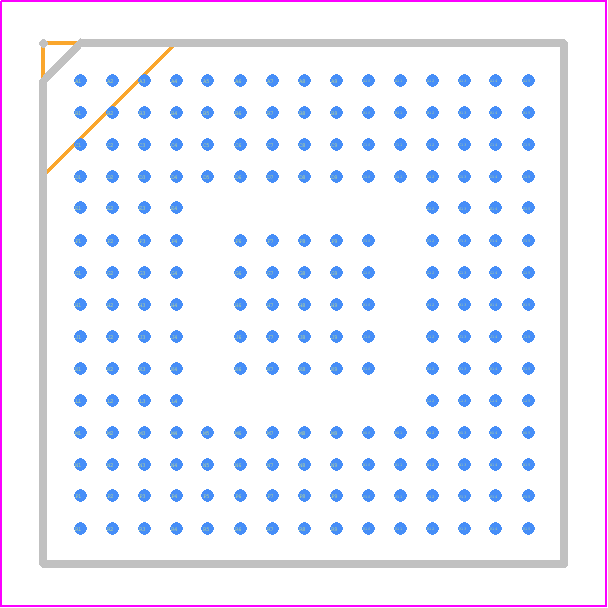

DLPC150ZEZ - Texas Instruments PCB footprint - BGA - BGA - ZEZ0201A
click to zoom
3D Models
DLPC150ZEZ - Texas Instruments - 3D model - BGA - ZEZ0201A
click to zoom

DLPC150ZEZ Details

  • Manufacturer Part Number:

    DLPC150ZEZ

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bit Size:

    24

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    24.002 MHz

  • Display Configuration:

    854 X 480 PIXELS

  • External Data Bus Width:

    24

  • JESD-30 Code:

    S-PBGA-B201

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    201

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    NFBGA

  • Package Equivalence Code:

    BGA201,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max:

    232.2 mA

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC150ZEZ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guidelines in the DLPC150ZEZ User's Guide (SLAU575). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The DLPC150ZEZ can be configured using the DLPC150ZEZ Programmer's Guide (SLAU576) and the DLPC150ZEZ API. The guide provides detailed information on how to configure the device for various display resolutions and refresh rates.
  • The DLPC150ZEZ supports a maximum data transfer rate of 12 Gbps per lane, with a total bandwidth of 48 Gbps for the four-lane interface.
  • Texas Instruments provides a troubleshooting guide for the DLPC150ZEZ (SLAU577) that covers common issues and their solutions. Additionally, the DLPC150ZEZ API provides debug tools and error reporting mechanisms to help identify and resolve issues.
  • Yes, the DLPC150ZEZ is compatible with various display interfaces, including HDMI, DisplayPort, and MIPI DSI. The device can be configured to support different display interfaces using the DLPC150ZEZ API and Programmer's Guide.
