DLPC230TZDQRQ1 - Texas Instruments

Description: Display Drivers & Controllers DLP® automotive DMD controller for DLP553x-Q1 chipset 324-BGA -40 to 105

Download DLPC230TZDQRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC230TZDQRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

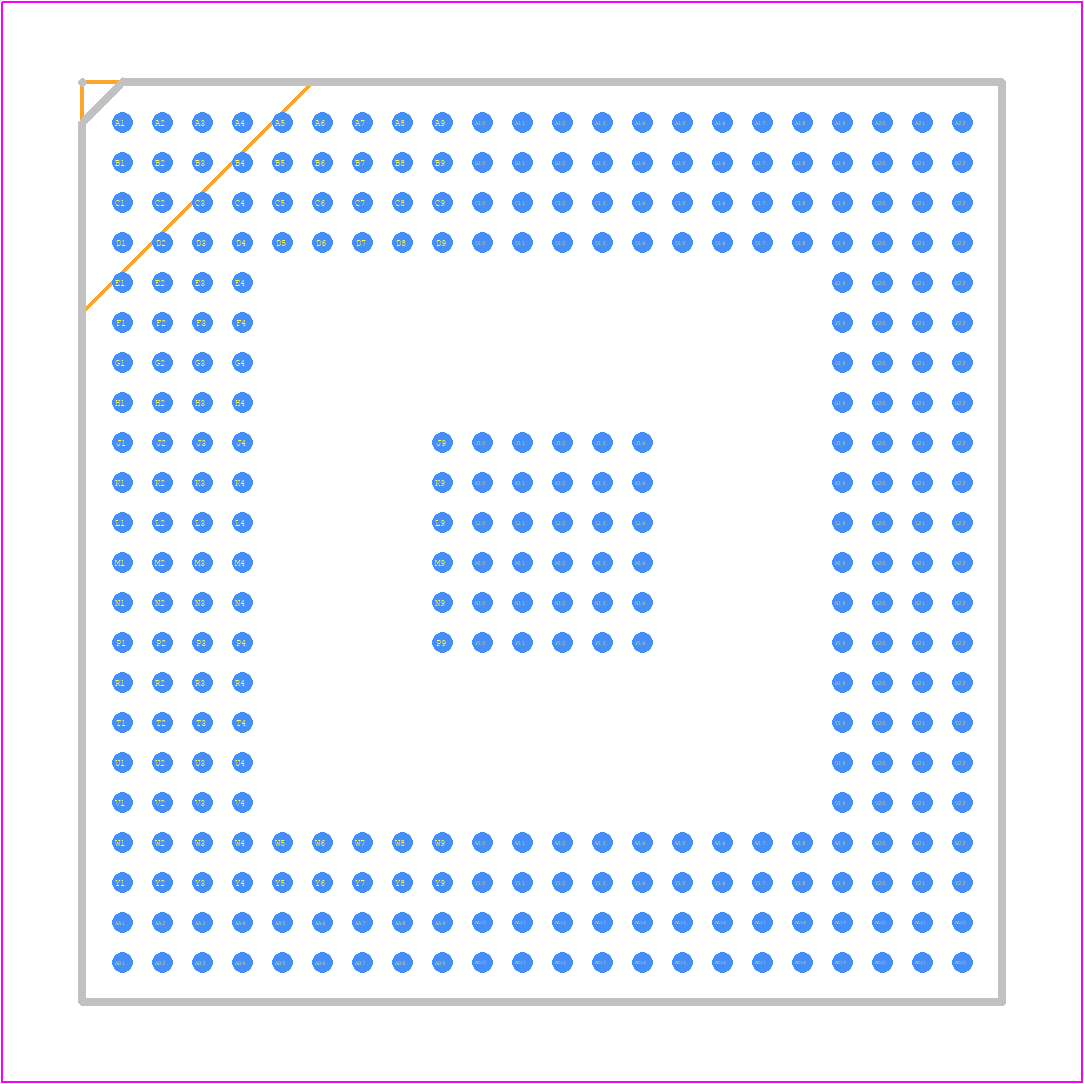

DLPC230TZDQRQ1 - Texas Instruments PCB footprint - BGA - BGA - 324_bga-2-1
click to zoom
3D Models
DLPC230TZDQRQ1 - Texas Instruments - 3D model - BGA - 324_bga-2-1
click to zoom

DLPC230TZDQRQ1 Details

  • Manufacturer Part Number:

    DLPC230TZDQRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    110 MHz

  • External Data Bus Width:

    24

  • JESD-30 Code:

    S-PBGA-B324

  • Length:

    23 mm

  • Number of Terminals:

    324

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HBGA

  • Package Equivalence Code:

    BGA324,22X22,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, HEAT SINK/SLUG

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.352 mm

  • Supply Current-Max:

    390.7 mA

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    23 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC230TZDQRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in the 'DLPC230TZDQRQ1 PCB Layout and Thermal Management' application note. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The DLPC230TZDQRQ1 can be configured using the DLPC230 GUI software, which provides a user-friendly interface to set up the device for various display resolutions and interfaces, including HDMI, DisplayPort, and LVDS.
  • The DLPC230TZDQRQ1 supports a maximum clock frequency of 150 MHz, which allows it to drive high-resolution displays at fast refresh rates.
  • The DLPC230TZDQRQ1 has built-in power management features, including dynamic voltage and frequency scaling, which can be controlled through the device's registers. Additionally, the device can be put into low-power modes during idle periods to reduce power consumption.
  • Texas Instruments recommends using the Code Composer Studio (CCS) integrated development environment (IDE) for firmware development on the DLPC230TZDQRQ1. CCS provides a comprehensive set of tools and libraries for developing and debugging firmware on the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLPC230TZDQRQ1 Overview

Use the download button to access the DLPC230TZDQRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPC2, or try a keyword search, such as Display Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
