DLPC3435ZEZR - Texas Instruments

DLPC3435ZEZR Details

• Manufacturer Part Number:

  DLPC3435ZEZR

• Brand Name:

  Texas Instruments

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

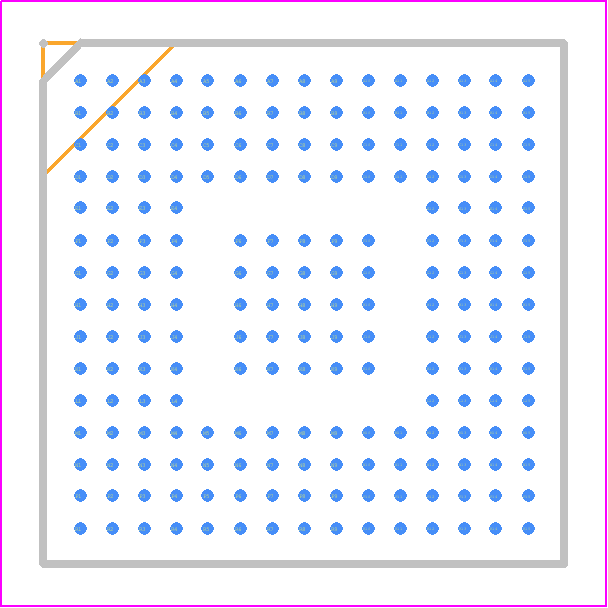

• Package Description:

  NFBGA-201

• HTS Code:

  8542.31.00.30

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Bit Size:

  24

• Bus Compatibility:

  I2C, SPI

• Clock Frequency-Max:

  24.002 MHz

• Display Configuration:

  854 X 480 PIXELS

• External Data Bus Width:

  24

• JESD-30 Code:

  S-PBGA-B201

• Length:

  13 mm

• Number of Terminals:

  201

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -30 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA201,15X15,32

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Seated Height-Max:

  1 mm

• Supply Voltage-Max:

  1.155 V

• Supply Voltage-Min:

  1.045 V

• Supply Voltage-Nom:

  1.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  13 mm

• uPs/uCs/Peripheral ICs Type:

  DISPLAY CONTROLLER, DLP
