DLPC3437CZEZ - Texas Instruments

Description: DLP® Display Controller for DLP3310 (0.33 1080p) DMD

Download DLPC3437CZEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC3437CZEZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

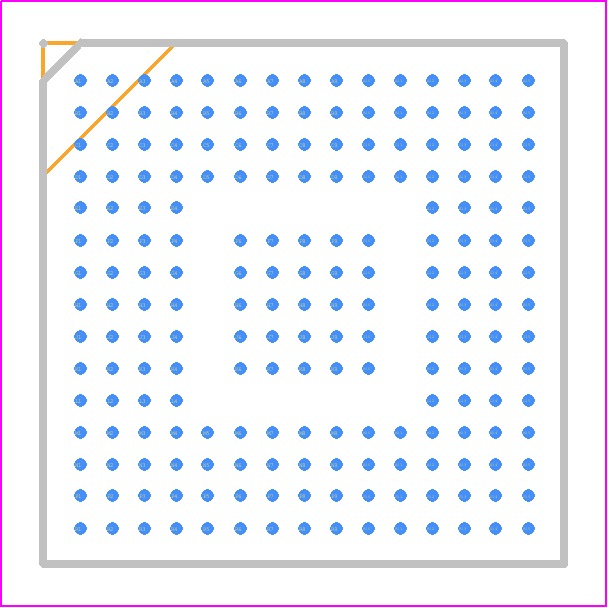

DLPC3437CZEZ - Texas Instruments PCB footprint - BGA - BGA - ZEZ0201A
click to zoom
3D Models
DLPC3437CZEZ - Texas Instruments - 3D model - BGA - ZEZ0201A
click to zoom

DLPC3437CZEZ Details

  • Manufacturer Part Number:

    DLPC3437CZEZ

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2018-01-26

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bit Size:

    24

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    24.002 MHz

  • Display Configuration:

    1920 X 1080 PIXELS

  • External Data Bus Width:

    24

  • JESD-30 Code:

    S-PBGA-B201

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    201

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA201,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC3437CZEZ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guidelines in the DLPC3437CZEZ datasheet and application notes. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • To optimize the DLPC3437CZEZ for low power consumption, use the power-saving features such as dynamic voltage and frequency scaling, clock gating, and power gating. Additionally, optimize the firmware and software to minimize power consumption during idle periods.
  • The DLPC3437CZEZ has an operating temperature range of -40°C to 85°C. However, it's essential to ensure proper thermal management to maintain a safe operating temperature and prevent overheating.
  • To troubleshoot issues with the DLPC3437CZEZ, use the debugging tools and software development kits (SDKs) provided by Texas Instruments. Analyze the system logs, check the power supply and clock signals, and verify the firmware and software configurations.
  • Yes, the DLPC3437CZEZ can be used with other Texas Instruments devices, such as the DLP553x or DLP5531, to create a complete digital light processing (DLP) system. Ensure compatibility and follow the recommended design guidelines for each device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLPC3437CZEZ Overview

Use the download button to access the DLPC3437CZEZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPC3, or try a keyword search, such as Display Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
