- Part Number DLPC3438ZEZ
- Manufacturer Texas Instruments
- Pin Count 201
- Part Category Integrated Circuit
- Package Category BGA

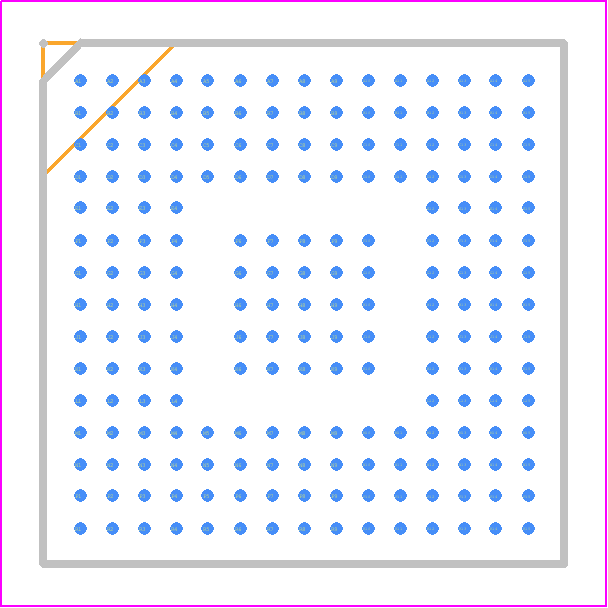

- Footprint Name BGA - ZEZ0201A
- Released Date Oct 4, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
DLPC3438ZEZ Details
-
Manufacturer Part Number:
DLPC3438ZEZ
-
Brand Name:
Texas Instruments
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
NFBGA-201
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
-
Bus Compatibility:
I2C, SPI
-
Clock Frequency-Max:
24.002 MHz
DLPC3438ZEZ Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout and thermal management guide in the DLPC3438ZEZ Evaluation Module User's Guide (SLAU622). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
-
The DLPC3438ZEZ can be configured using the DLPC3438ZEZ Programmer's Guide (SLAU623) and the DLPC3438ZEZ API Guide (SLAU624). These resources provide detailed information on how to program the device for specific display resolutions and refresh rates.
-
The DLPC3438ZEZ has an operating temperature range of -40°C to 85°C. However, it's essential to ensure proper thermal management to maintain a junction temperature below 125°C to ensure reliable operation.
-
Yes, the DLPC3438ZEZ can be used with non-TI microcontrollers. However, it's essential to ensure that the microcontroller can provide the necessary clock signals, data transfer, and control signals required by the DLPC3438ZEZ.
-
The power consumption of the DLPC3438ZEZ varies depending on the operating mode and display configuration. The typical power consumption is around 1.5W, but it can be as low as 100mW in standby mode. Refer to the datasheet for more detailed power consumption information.
