DLPC3439CZEZ - Texas Instruments

Description: DLP® Display Controller for DLP4710 (0.47 1080p) DMD

Download DLPC3439CZEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC3439CZEZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

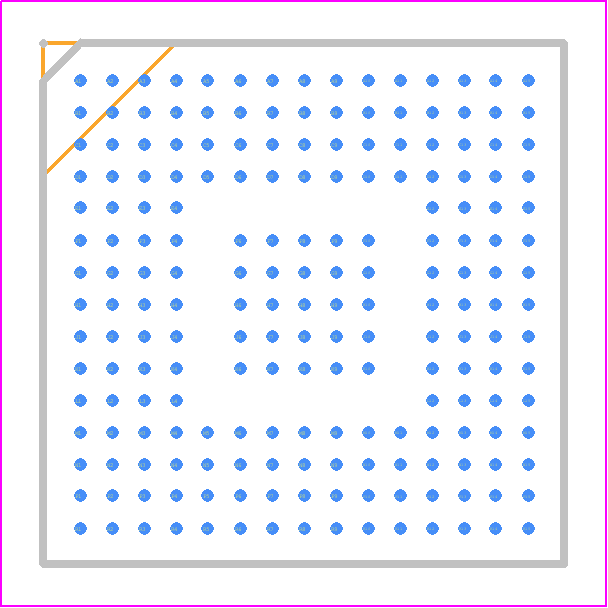

DLPC3439CZEZ - Texas Instruments PCB footprint - BGA - BGA - ZEZ0201A
click to zoom
3D Models
DLPC3439CZEZ - Texas Instruments - 3D model - BGA - ZEZ0201A
click to zoom

DLPC3439CZEZ Details

  • Manufacturer Part Number:

    DLPC3439CZEZ

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    24.002 MHz

  • Display Configuration:

    1920 X 1080 PIXELS

  • JESD-30 Code:

    S-PBGA-B201

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    201

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA201,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC3439CZEZ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow the guidelines for thermal management, decoupling, and signal integrity to ensure optimal performance.
  • The DLPC3439CZEZ is a highly configurable device. You can configure it using the DLPC3439 GUI software, which allows you to set the display resolution, pixel clock, and other parameters. Refer to the user guide for the GUI software for more information.
  • The DLPC3439CZEZ has an operating temperature range of -40°C to 85°C. However, it's essential to ensure proper thermal management to maintain optimal performance and reliability.
  • Yes, the DLPC3439CZEZ is a standalone display controller and can be used with non-TI processors. However, you may need to develop custom software and interfaces to communicate with the DLPC3439CZEZ.
  • Texas Instruments provides a range of debugging tools and resources, including the DLPC3439 GUI software, oscilloscope, and logic analyzer. You can also refer to the datasheet and application notes for troubleshooting guidelines.
