DLPC3478CZEZ - Texas Instruments

Description: DLP® Display and Light Controller for DLP3010 (0.3 720p) DMD

Download DLPC3478CZEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC3478CZEZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

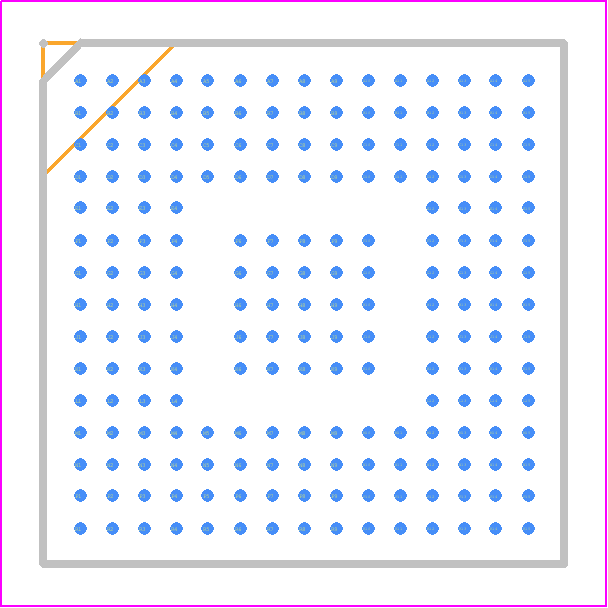

DLPC3478CZEZ - Texas Instruments PCB footprint - BGA - BGA - ZEZ0201A
click to zoom
3D Models
DLPC3478CZEZ - Texas Instruments - 3D model - BGA - ZEZ0201A
click to zoom

DLPC3478CZEZ Details

  • Manufacturer Part Number:

    DLPC3478CZEZ

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2018-08-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    24.002 MHz

  • Display Configuration:

    1280 X 720 PIXELS

  • JESD-30 Code:

    S-PBGA-B201

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    201

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    NFBGA

  • Package Equivalence Code:

    BGA201,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP
