DLPC3479CZEZ - Texas Instruments

Description: DLP® Display and Light Controller for DLP4710 (0.47 1080p) DMD

Download DLPC3479CZEZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC3479CZEZ - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

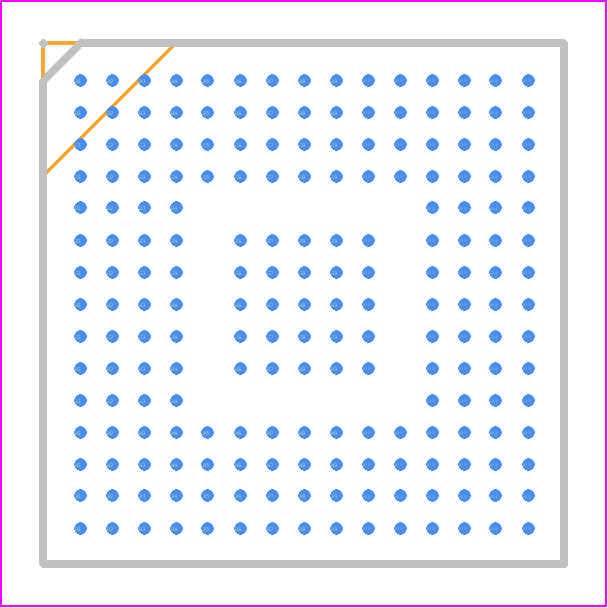

DLPC3479CZEZ - Texas Instruments PCB footprint - BGA - BGA - ZEZ0201A
click to zoom
3D Models
DLPC3479CZEZ - Texas Instruments - 3D model - BGA - ZEZ0201A
click to zoom

DLPC3479CZEZ Details

  • Manufacturer Part Number:

    DLPC3479CZEZ

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.50

  • Date Of Intro:

    2018-06-07

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Bus Compatibility:

    I2C, SPI

  • Clock Frequency-Max:

    24.002 MHz

  • Display Configuration:

    1920 X 1080 PIXELS

  • JESD-30 Code:

    S-PBGA-B201

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    201

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA201,15X15,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    1.155 V

  • Supply Voltage-Min:

    1.045 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    13 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC3479CZEZ Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guidelines in the DLPC3479CZEZ Evaluation Module User's Guide (SLAU622). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • To optimize the DLPC3479CZEZ for low power consumption, use the Power Management Registers (PMR) to control the power modes of the device. Additionally, use the Dynamic Voltage and Frequency Scaling (DVFS) feature to adjust the voltage and frequency of the device based on the system's requirements.
  • The maximum frequency of the DLPC3479CZEZ is 1.2 GHz. To configure the frequency, use the Clock Management Registers (CMR) to set the clock frequency and configure the clock sources. Refer to the DLPC3479CZEZ datasheet and the TRM (Technical Reference Manual) for more information.
  • To implement secure boot on the DLPC3479CZEZ, use the Secure Boot and Image Authentication feature. This feature uses a combination of cryptographic algorithms and secure boot mechanisms to ensure the authenticity and integrity of the boot process. Refer to the DLPC3479CZEZ TRM and the Secure Boot and Image Authentication Application Report (SPRAAS5) for more information.
  • The recommended memory configuration for the DLPC3479CZEZ depends on the specific application requirements. However, a typical configuration includes a combination of DDR3/DDR3L SDRAM, NAND Flash, and QSPI Flash. Refer to the DLPC3479CZEZ datasheet and the TRM for more information on memory configuration and interface.
