Texas Instruments provides a recommended PCB layout and thermal management guidelines in the DLPC350ZFF User's Guide (SLAU522) and the DLPC350ZFF Thermal Design Guide (SLAU523). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
The DLPC350ZFF can be configured using the DLPC350ZFF GUI Software (available on the TI website) or through the I2C interface using the DLPC350ZFF Register Map (available in the datasheet). The configuration depends on the specific display requirements, and the user should refer to the DLPC350ZFF User's Guide (SLAU522) for detailed instructions.
The DLPC350ZFF can support input data rates up to 12 Gbps per lane, which translates to a maximum aggregate bandwidth of 48 Gbps for a 4-lane configuration. However, the actual data rate may be limited by the specific display resolution, refresh rate, and color depth.
To ensure EMC and EMI compliance, follow the guidelines in the DLPC350ZFF EMI and EMC Design Guide (SLAU524) and the TI EMC and EMI Design Guide (SLYT670). Additionally, use proper PCB layout, shielding, and filtering techniques to minimize electromagnetic radiation and susceptibility.
The power consumption of the DLPC350ZFF depends on the specific configuration, display resolution, and refresh rate. The typical power consumption is around 1.5W. To optimize power consumption, use the power-saving features of the DLPC350ZFF, such as dynamic voltage and frequency scaling, and follow the guidelines in the DLPC350ZFF Power Management Guide (SLAU525).
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DLPC350ZFF Overview

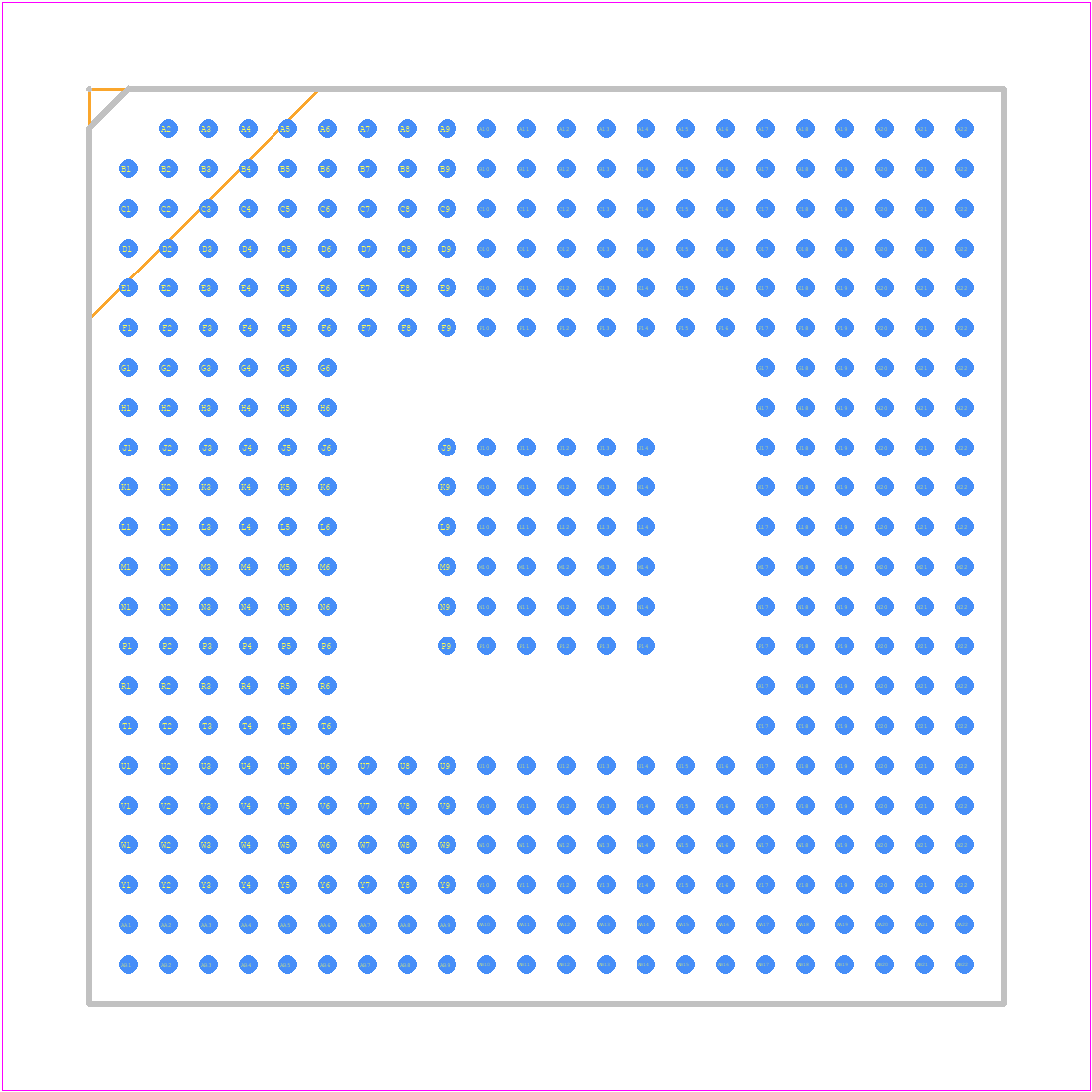

Use the download button to access the DLPC350ZFF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPC3,
or try a keyword search, such as Display Controllers
