Texas Instruments provides a recommended PCB layout and thermal management guide in the DLPC6421ZPC User's Guide (SLAU623) and the DLPC6421ZPC Thermal Design Guide (SLAU624). These guides provide detailed information on PCB layout, thermal pad connections, and heat sink design to ensure optimal performance and reliability.
The DLPC6421ZPC can be programmed and configured using the DLPC6421ZPC GUI Software (DLPC6421ZPC-GUI) provided by Texas Instruments. This software allows users to configure the device, upload patterns, and monitor its operation. Additionally, the device can be controlled and configured through the I2C interface using a microcontroller or a dedicated controller.
The DLPC6421ZPC can support pattern rates up to 32 kHz and data transfer rates up to 1.2 Gbps. However, the actual pattern rate and data transfer rate may vary depending on the specific application, pattern complexity, and system design.
To ensure the reliability and long-term stability of the DLPC6421ZPC, it is essential to follow proper handling, storage, and operating procedures. This includes controlling the operating temperature, humidity, and power supply voltage, as well as avoiding electrical overstress, mechanical stress, and contamination. Additionally, Texas Instruments recommends following the guidelines outlined in the DLPC6421ZPC Reliability and Quality Report (SLAU625).
The DLPC6421ZPC is specified to operate up to 85°C, but it can be used in high-temperature applications with proper thermal management and derating. Texas Instruments provides guidance on high-temperature operation and derating in the DLPC6421ZPC datasheet and application notes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DLPC6421ZPC Overview

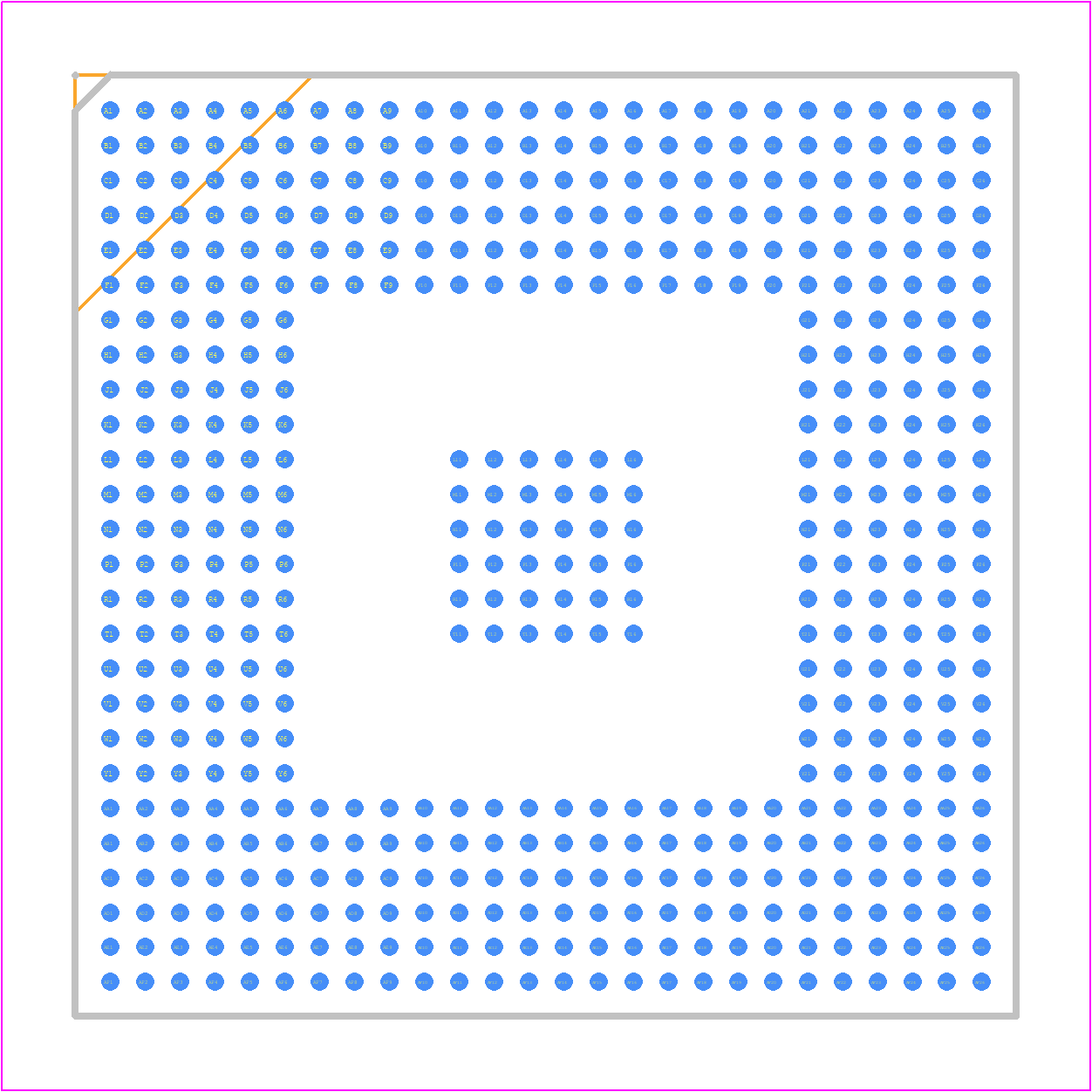

Use the download button to access the DLPC6421ZPC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPC6,
or try a keyword search, such as Display Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
