DLPC7540ZDC - Texas Instruments

Description: DLP® display High Resolution Controller for 4K UHD and 1080p DMD P-HBGA (676) (31x31)

Download DLPC7540ZDC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC7540ZDC - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

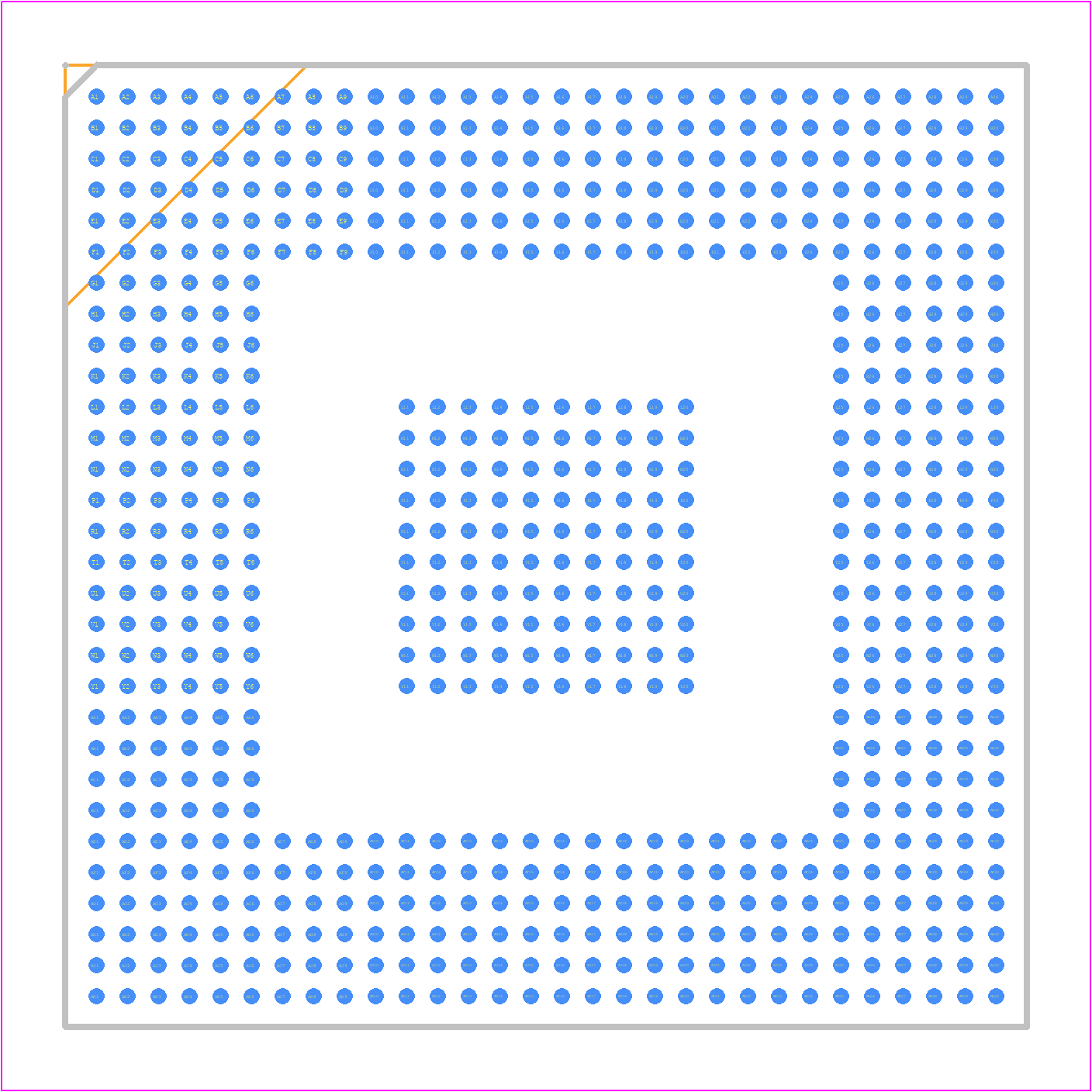

DLPC7540ZDC - Texas Instruments PCB footprint - BGA - BGA - ZDC0676A_2025-1
click to zoom
3D Models
DLPC7540ZDC - Texas Instruments - 3D model - BGA - ZDC0676A_2025-1
click to zoom

DLPC7540ZDC Details

  • Manufacturer Part Number:

    DLPC7540ZDC

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2020-10-30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-PBGA-B676

  • Number of Functions:

    1

  • Number of Terminals:

    676

  • Operating Temperature-Max:

    55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA676(UNSPEC)

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Surface Mount:

    YES

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Position:

    BOTTOM

DLPC7540ZDC Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guide in the DLPC7540ZDC User's Guide (SLAU522) and the Thermal Design Guide (SLUA623). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • The DLPC7540ZDC is a highly configurable device. You can use the DLPC7540ZDC GUI Software (DLPC-GUI) to configure the device for your specific display requirements, including setting up the display resolution, pixel clock, and other parameters.
  • The DLPC7540ZDC has an operating temperature range of -40°C to 85°C. However, the device's performance and reliability may be affected at extreme temperatures. It's essential to ensure proper thermal management and follow the recommended operating conditions.
  • Yes, the DLPC7540ZDC can be used with non-TI microcontrollers. However, you may need to develop custom firmware and software to interface with the DLPC7540ZDC. Texas Instruments provides a reference design and software development kit (SDK) for TI microcontrollers, but you can adapt it for use with other microcontrollers.
  • Texas Instruments provides a troubleshooting guide in the DLPC7540ZDC User's Guide (SLAU522) and the DLPC7540ZDC Errata (SLAU624). You can also use the DLPC7540ZDC GUI Software (DLPC-GUI) to debug and troubleshoot issues with the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLPC7540ZDC Overview

Use the download button to access the DLPC7540ZDC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPC7, or try a keyword search, such as Other Consumer ICs
