DLPC900AZPC - Texas Instruments

Description: Display Drivers & Controllers DLP® digital controller for DLP6500 & DLP9000 digital micromirror devices (DMDs) 516-BGA 0 to 55

Download DLPC900AZPC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
DLPC900AZPC - Texas Instruments - PCB symbol
click to zoom
PCB Footprints

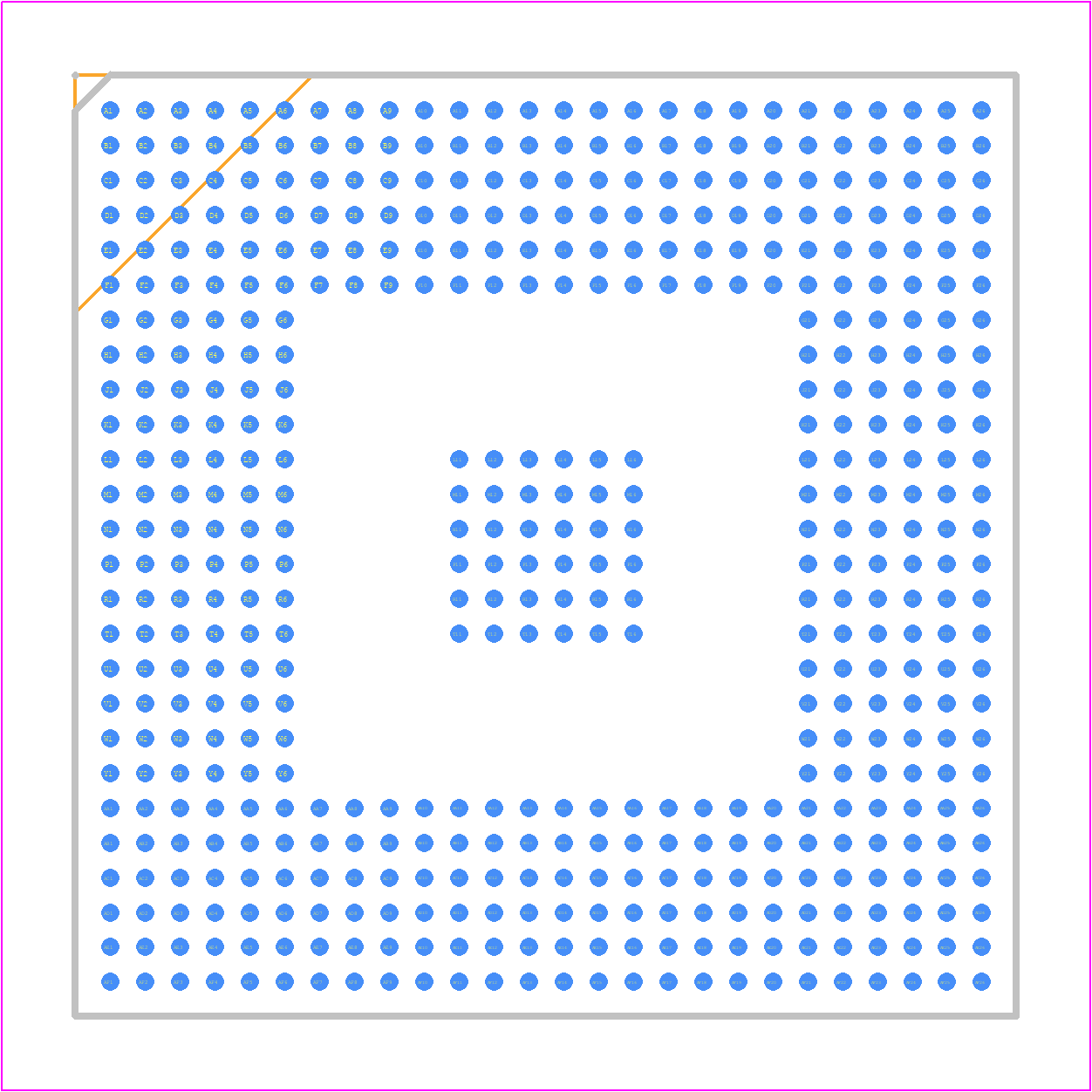

DLPC900AZPC - Texas Instruments PCB footprint - BGA - BGA - DLPC900ZPC*1
click to zoom
3D Models
DLPC900AZPC - Texas Instruments - 3D model - BGA - DLPC900ZPC*1
click to zoom

DLPC900AZPC Details

  • Manufacturer Part Number:

    DLPC900AZPC

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • JESD-30 Code:

    S-PBGA-B516

  • Length:

    27 mm

  • Number of Terminals:

    516

  • Operating Temperature-Max:

    55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    BGA

  • Package Equivalence Code:

    BGA516,26X26,40

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY

  • Seated Height-Max:

    2.42 mm

  • Supply Voltage-Max:

    1.2 V

  • Supply Voltage-Min:

    1.1 V

  • Supply Voltage-Nom:

    1.15 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    27 mm

  • uPs/uCs/Peripheral ICs Type:

    DISPLAY CONTROLLER, DLP

DLPC900AZPC Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDD (1.8V) first, followed by VDDA (1.8V), and then VDDL (1.2V). This ensures proper power-up and minimizes the risk of latch-up or damage to the device.
  • The DLPC900AZPC can be configured for different display resolutions using the SPI interface. The device has a set of registers that control the display resolution, pixel clock frequency, and other display parameters. Refer to the DLPC900AZPC programming guide for specific register settings and configuration details.
  • The DLPC900AZPC supports a maximum data transfer rate of 1.5 Gbps per lane, with a total bandwidth of 12 Gbps for the 8-lane interface.
  • The DLPC900AZPC requires a clock signal to operate. A clock signal can be generated using an external clock source or a phase-locked loop (PLL) circuit. The device also requires synchronization signals, such as horizontal and vertical sync signals, to synchronize the display data with the display panel.
  • The power consumption of the DLPC900AZPC depends on the operating frequency, data transfer rate, and other factors. The typical power consumption is around 1.2W, but it can vary depending on the specific application and usage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLPC900AZPC Overview

Use the download button to access the DLPC900AZPC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLPC9, or try a keyword search, such as Display Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
