DLPC900ZPC - Texas Instruments

Description: IC DIG MICROMIRROR DEVICE 516BGA

Download DLPC900ZPC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

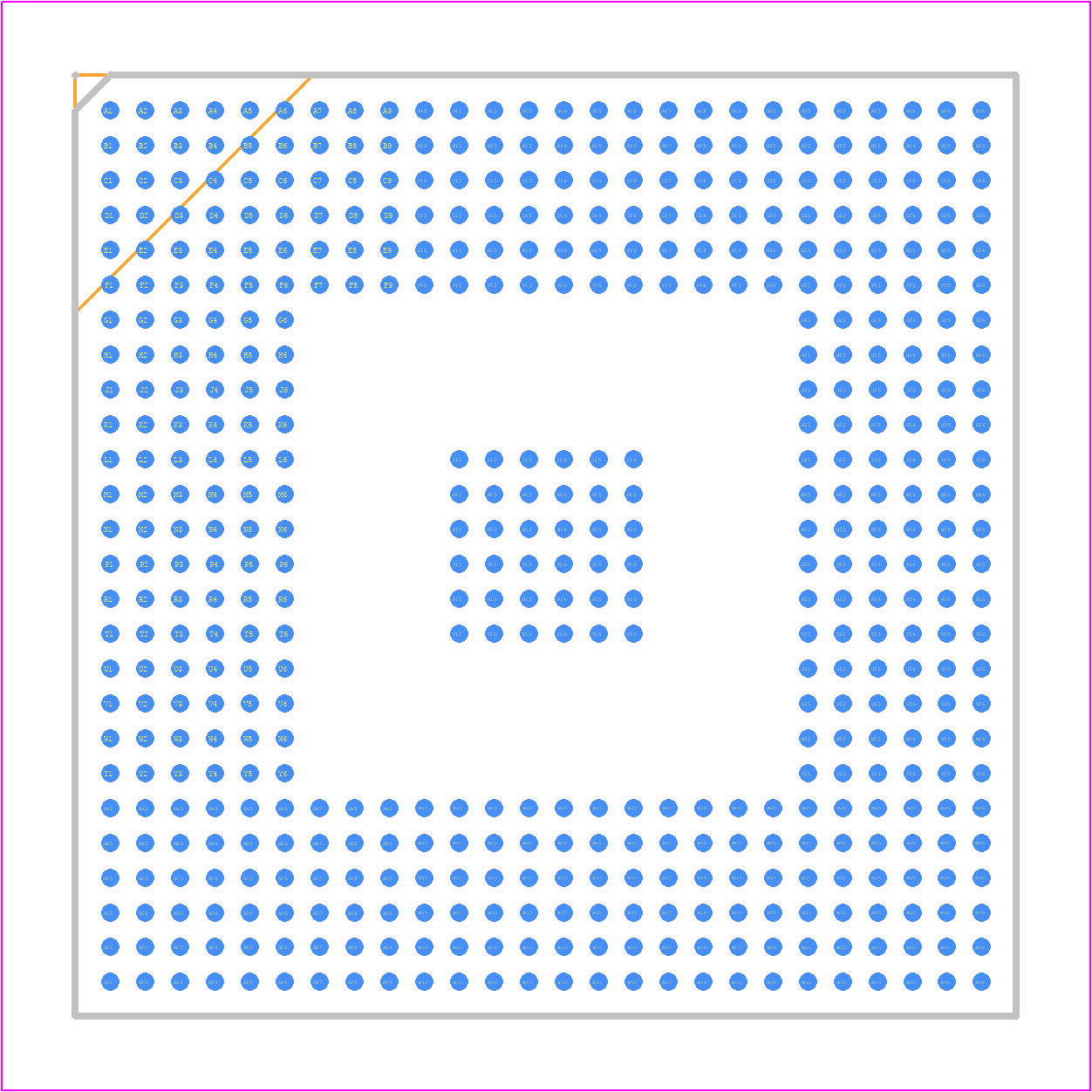

DLPC900ZPC - Texas Instruments PCB footprint - BGA - BGA - DLPC900ZPC*1
click to zoom
3D Models
DLPC900ZPC - Texas Instruments  - 3D model - BGA - DLPC900ZPC*1
click to zoom

DLPC900ZPC Details

  • Manufacturer Part Number:

    DLPC900ZPC

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    BGA-516

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

DLPC900ZPC Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout and thermal management guidelines in the DLPC900ZPC User's Guide (SLAU575). It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • TI provides a DLPC900ZPC Evaluation Module (EVM) and a Software Development Kit (SDK) that includes a GUI-based configuration tool, APIs, and example code. These resources can help optimize the DLPC900ZPC's performance for your specific application.
  • The DLPC900ZPC supports a maximum data transfer rate of 12 Gbps over the FPD-Link III interface, which is sufficient for high-speed applications such as 4K and 8K video transmission.
  • TI provides guidelines for EMC and EMI compliance in the DLPC900ZPC User's Guide (SLAU575). Additionally, the device is designed to meet CISPR 25 Class 5 and FCC Part 15 Class B emissions standards.
  • The DLPC900ZPC's power consumption varies depending on the operating mode and configuration. TI provides power consumption estimates in the datasheet. To optimize power management, use the device's power-saving features, such as dynamic voltage and frequency scaling, and consider using a power management IC (PMIC) to regulate power supply voltages.
