DLS3XS6AK44X footprint, schematic symbol and 3D model by CONEC

Symbol

click to zoom

PCB Footprints

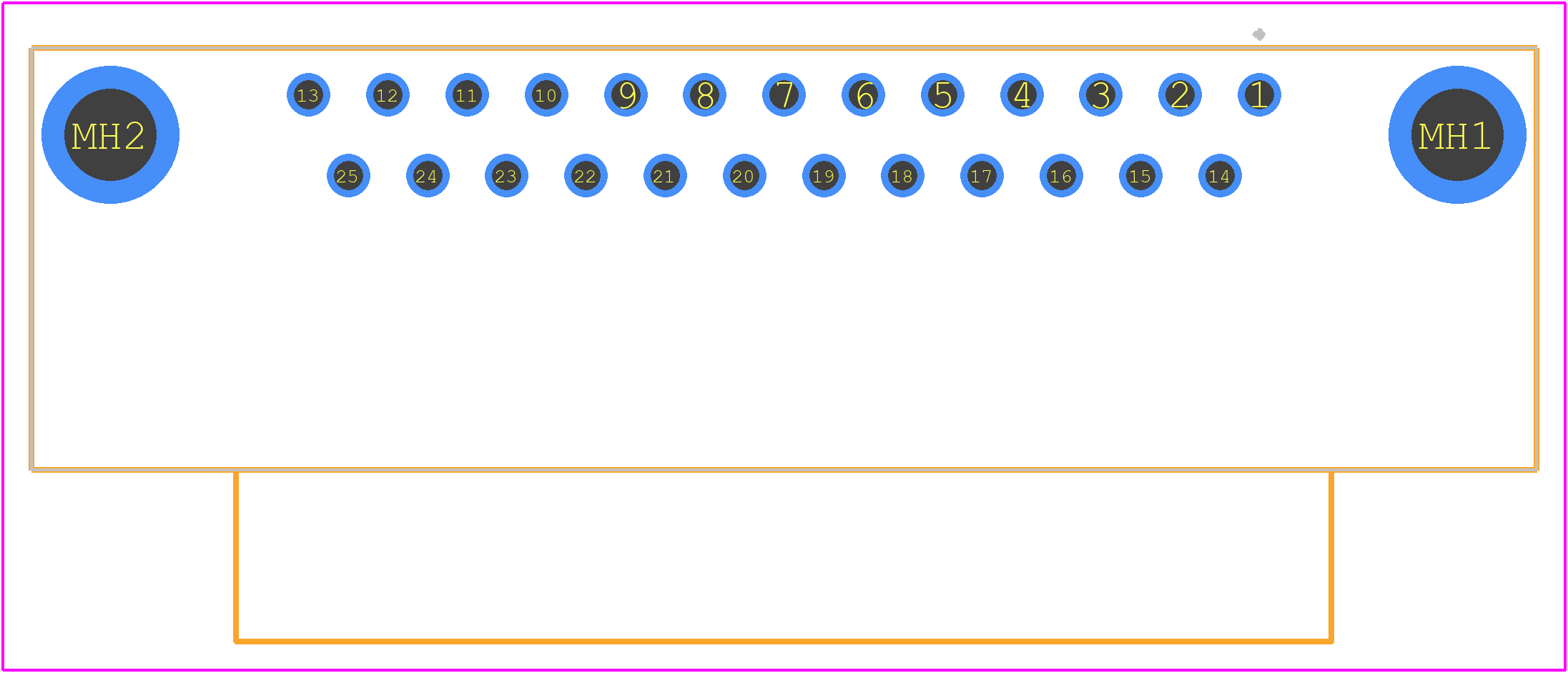

DLS3XS6AK44X - CONEC PCB footprint - Other - Other - DLS3XS6AK44X-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for DLS3XS6AK44X
Part Number DLS3XS6AK44X
Manufacturer CONEC
Pin Count 27
Part Category Connector
Package Category Other
Footprint Name Other - DLS3XS6AK44X-1
Released Date Nov 16, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

DLS3XS6AK44X Details

Manufacturer Part Number:
DLS3XS6AK44X
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
Conec Corporation
Body Breadth:
0.492 inch
Body Depth:
0.581 inch
Body Length:
2.091 inch
Contact Finish Mating:
AU ON NI
Contact Finish Termination:
TIN OVER NICKEL
Contact Gender:
FEMALE
Contact Material:
COPPER ALLOY
Contact Pattern:
STAGGERED
Contact Resistance:
15 mΩ
Contact Style:
RND PIN-SKT
Dielectric Withstanding Voltage:
1000VAC V
Insulation Resistance:
3000000000 Ω
Insulator Material:
POLYETHYLENE
Mating Contact Pitch:
0.109 inch
Mating Contact Row Spacing:
0.112 inch
Mounting Option 1:
#4-40
Mounting Option 2:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
STAGGERED
PCB Contact Row Spacing:
2.8448 mm
Plating Thickness:
FLASH inch
Rated Current (Signal):
3 A
Reference Standard:
UL
Shell Material:
STEEL
Terminal Length:
0.122 inch
Terminal Pitch:
2.7686 mm
Termination Type:
SOLDER
Total Number of Contacts:
25

DLS3XS6AK44X Frequently Asked Questions (FAQs)

The recommended torque value is 0.5 Nm to 1.5 Nm, but it's essential to consult the specific application and environmental requirements to determine the optimal torque value.
To ensure proper mating and unmating, align the connector carefully, and use a gentle, controlled motion to mate or unmate the connector. Avoid applying excessive force, which can damage the connector or its components.
The operating temperature range for the DLS3XS6AK44X connector is -40°C to 125°C, but it's essential to consult the specific application and environmental requirements to determine the optimal operating temperature range.
Yes, the DLS3XS6AK44X connector is designed to withstand high-vibration environments. However, it's crucial to consult the specific application and environmental requirements to determine the optimal connector configuration and mounting method.
The DLS3XS6AK44X connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.

Trust Checks

Expert Contribution

System Verified

Community Approved

DLS3XS6AK44X Overview

Use the download button to access the DLS3XS6AK44X schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like DLS3X, or try a keyword search, such as D Type Connectors
