Part Image

DLW05B-12 - Mean Well

Description: Isolated DC/DC Converters 5W 18-36Vin +/-12V +/-20.8 to +/-208mA

Download DLW05B-12 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

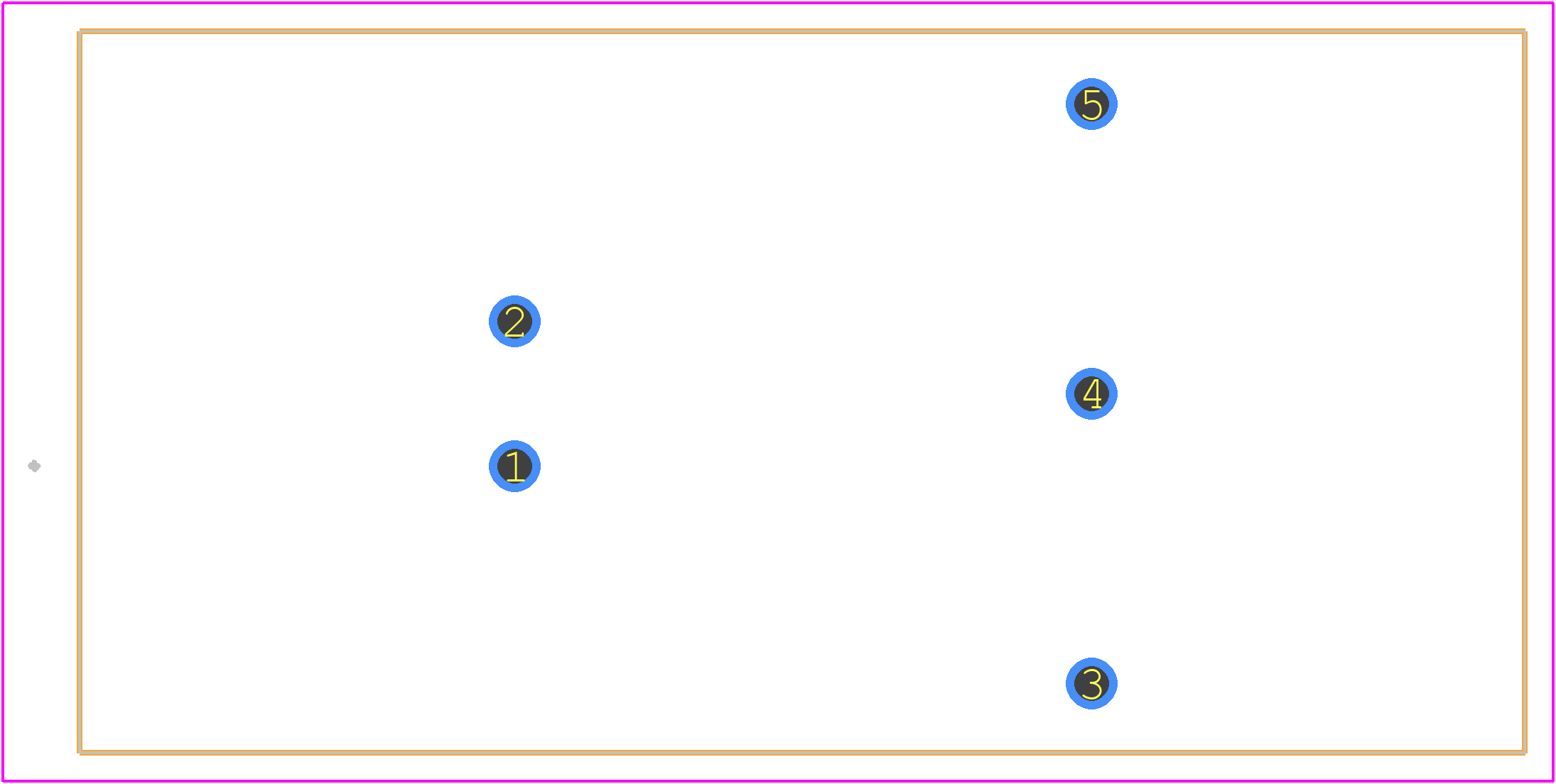

DLW05B-12 - Mean Well PCB footprint - Other - Other - DLW05B-12-2
click to zoom
3D Models
DLW05B-12 - Mean Well  - 3D model - Other - DLW05B-12-2
click to zoom

DLW05B-12 Details

  • Manufacturer Part Number:

    DLW05B-12

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    compliant

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mean Well

  • Risk Rank:

    2.15

  • YTEOL:

    7.3

  • Additional Feature:

    IT ALSO HAS -12V OUTPUT

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    CE, EAC, FCC, UKCA, UL

  • Efficiency (Main Output):

    82%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • JESD-30 Code:

    R-MDMA-P5

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.208 A

  • Output Voltage-Max:

    12.24 V

  • Output Voltage-Min:

    11.76 V

  • Output Voltage-Nom:

    12 V

  • Package Body Material:

    METAL

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER LOAD; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.02121 Vrms

  • Seated Height-Max:

    11.27 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    25.4 mm

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DLW05B-12 Overview

Use the download button to access the DLW05B-12 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DLW05, or try a keyword search, such as Other Analog ICs

About Mean Well

MEAN WELL is a manufacturer of standard power supply products used in communications, industrial, medical and automation industries. Their products include power supplies, converters, inverters, and battery chargers. MEAN WELL is headquartered in Taipei, Taiwan.
