DM1B-DSF-PEJ(92) - Hirose

Description: 12 (9 + 3) Position Card Connector Secure Digital - SD Surface Mount, Right Angle Gold

Download DM1B-DSF-PEJ(92) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

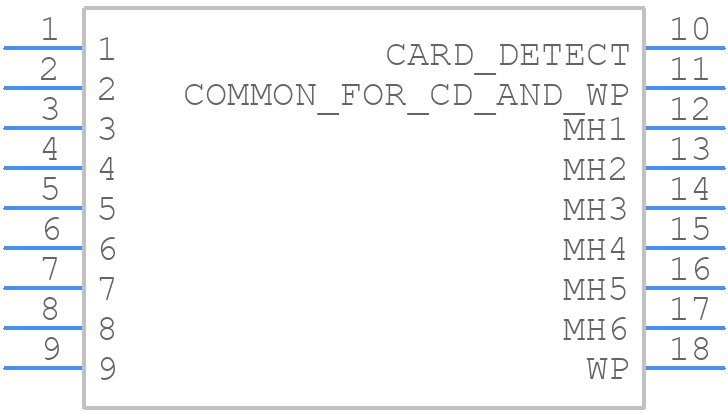

DM1B-DSF-PEJ(92) - Hirose - PCB symbol
click to zoom
PCB Footprints

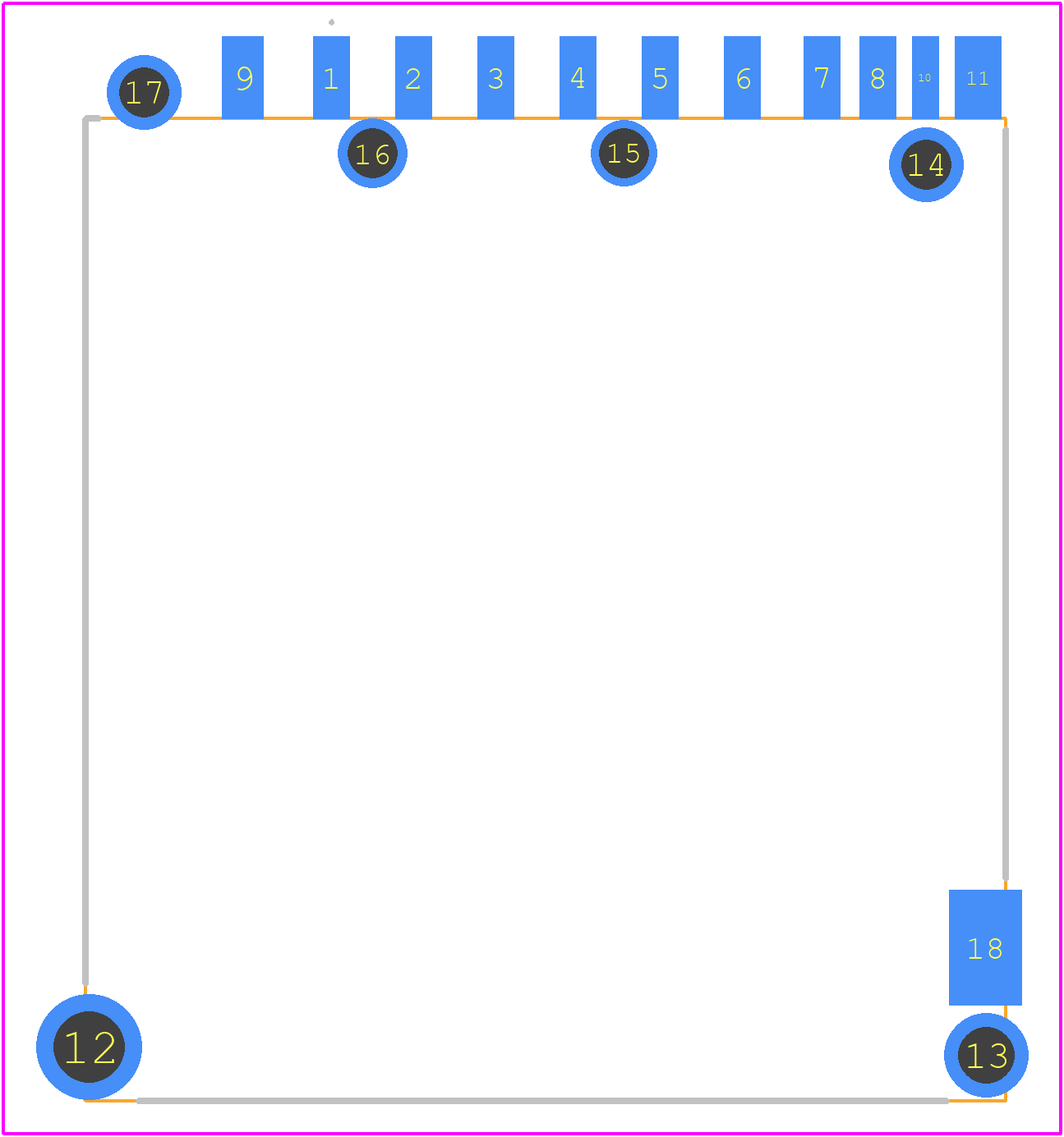

DM1B-DSF-PEJ(92) - Hirose PCB footprint - Other - Other - DM1B-DSF-PEJ(92)-10
click to zoom
3D Models
DM1B-DSF-PEJ(92) - Hirose - 3D model - Other - DM1B-DSF-PEJ(92)-10
click to zoom

DM1B-DSF-PEJ(92) Details

  • Manufacturer Part Number:

    DM1B-DSF-PEJ(92)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Hirose Electric Co Ltd

  • YTEOL:

    6.35

  • Connector Type:

    PCB CONNECTOR

DM1B-DSF-PEJ(92) Frequently Asked Questions (FAQs)

  • The recommended mating cycle for the DM1B-DSF-PEJ(92) connector is 500 cycles.
  • Yes, the DM1B-DSF-PEJ(92) connector is designed to withstand high-vibration environments, making it suitable for applications such as automotive, aerospace, and industrial equipment.
  • The operating temperature range for the DM1B-DSF-PEJ(92) connector is -40°C to 105°C.
  • Yes, the DM1B-DSF-PEJ(92) connector is compatible with lead-free soldering processes.
  • The typical contact resistance of the DM1B-DSF-PEJ(92) connector is 10 milliohms or less.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DM1B-DSF-PEJ(92) Overview

Use the download button to access the DM1B-DSF-PEJ(92) schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM1B-, or try a keyword search, such as Headers and Edge Type Connectors
