The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
To ensure reliable connections, make sure to clean the connector contacts before mating, use the recommended torque for screw-type connectors, and avoid over-tightening or under-tightening the screws.
The maximum operating temperature for the DM3AT-SF-PEJ2M5 connector is 125°C (257°F), as specified in the datasheet. However, it's recommended to derate the temperature range based on the specific application and environmental conditions.
Yes, the DM3AT-SF-PEJ2M5 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's essential to follow the recommended mounting and screw-tightening procedures to ensure reliable connections.
The recommended cable type and size for the DM3AT-SF-PEJ2M5 connector is a 24 AWG to 30 AWG cable, depending on the specific application and signal requirements. It's essential to consult the datasheet and application notes for specific guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DM3AT-SF-PEJ2M5 Overview

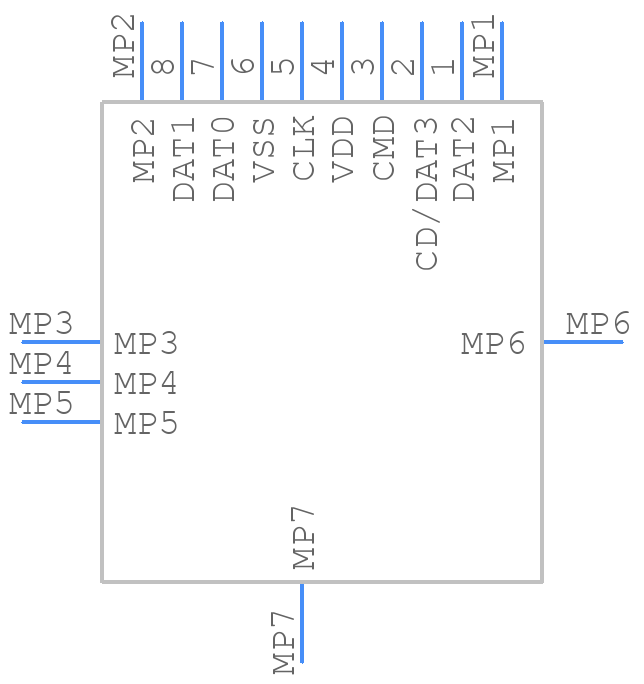

Use the download button to access the DM3AT-SF-PEJ2M5 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM3AT,
or try a keyword search, such as Headers and Edge Type Connectors
