DM74153N - Texas Instruments

Description: Encoders, Decoders, Multiplexers & Demultiplexers

Download DM74153N Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

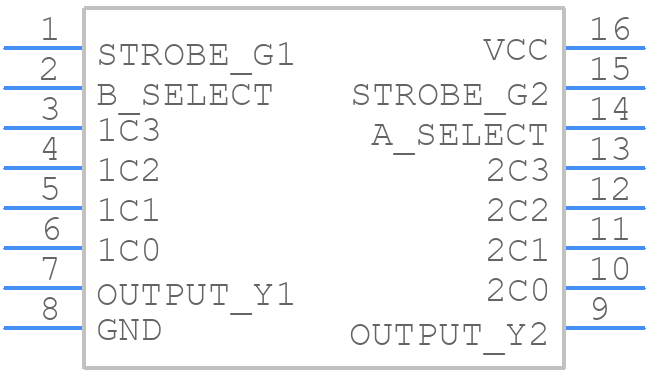

DM74153N - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
DM74153N - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - NS N16E
click to zoom
3D Models
DM74153N - Texas Instruments - 3D model - Dual-In-Line Packages - NS N16E
click to zoom

DM74153N Details

  • Manufacturer Part Number:

    DM74153N

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DIP, DIP16,.3

  • Reach Compliance Code:

    Unknown

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Family:

    TTL/H/L

  • JESD-30 Code:

    R-PDIP-T16

  • JESD-609 Code:

    e0

  • Length:

    19.305 mm

  • Load Capacitance (CL):

    30 pF

  • Logic IC Type:

    MULTIPLEXER

  • Max I(ol):

    0.016 A

  • Number of Functions:

    2

  • Number of Inputs:

    4

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP16,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Power Supply Current-Max (ICC):

    60 mA

  • Prop. Delay@Nom-Sup:

    23 ns

  • Propagation Delay (tpd):

    34 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    TTL

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    TIN LEAD

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

DM74153N Frequently Asked Questions (FAQs)

  • The DM74153N can operate at clock frequencies up to 20 MHz, but it's recommended to check the specific application and loading conditions to ensure reliable operation.
  • The DM74153N requires a single 5V power supply, and it's recommended to use a 0.1uF decoupling capacitor between VCC and GND pins, as close to the device as possible, to minimize noise and ensure reliable operation.
  • The DM74153N has a maximum input voltage rating of 5.5V, and exceeding this voltage can cause damage to the device. It's recommended to ensure that the input voltage is within the recommended operating range of 4.5V to 5.5V.
  • The enable inputs (EN1 and EN2) are active-low, meaning that they must be pulled low to enable the device. It's recommended to use a pull-up resistor to ensure that the enable inputs are properly biased, and to avoid floating inputs.
  • The propagation delay of the DM74153N is typically around 10-15ns, which can affect the timing of your design. It's recommended to consider the propagation delay when designing your system, especially in high-speed applications, to ensure that the signals are properly synchronized.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DM74153N Overview

Use the download button to access the DM74153N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DM741, or try a keyword search, such as Multiplexer/Demultiplexers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
