DM7447AN - Texas Instruments

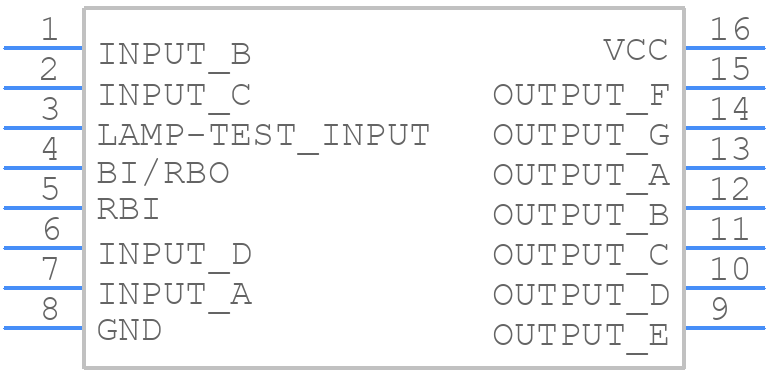

DM7447AN Details

• Manufacturer Part Number:

  DM7447AN

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  DIP

• Package Description:

  PLASTIC, DIP-16

• Pin Count:

  16

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  Texas Instruments

• YTEOL:

  0

• Family:

  TTL/H/L

• Input Conditioning:

  STANDARD

• JESD-30 Code:

  R-PDIP-T16

• Length:

  19.305 mm

• Load Capacitance (CL):

  15 pF

• Logic IC Type:

  SEVEN SEGMENT DECODER/DRIVER

• Max I(ol):

  0.04 A

• Number of Functions:

  1

• Number of Terminals:

  16

• Operating Temperature-Max:

  70 °C

• Output Characteristics:

  OPEN-COLLECTOR

• Output Polarity:

  INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Power Supply Current-Max (ICC):

  103 mA

• Prop. Delay@Nom-Sup:

  100 ns

• Propagation Delay (tpd):

  100 ns

• Seated Height-Max:

  5.08 mm

• Supply Voltage-Max (Vsup):

  5.25 V

• Supply Voltage-Min (Vsup):

  4.75 V

• Supply Voltage-Nom (Vsup):

  5 V

• Surface Mount:

  NO

• Technology:

  TTL

• Temperature Grade:

  COMMERCIAL

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Width:

  7.62 mm
