DMA201010R - Panasonic

Description: DMA201010R, Dual Digital Transistor, PNP -100 mA -50 V, Common Emitter, 5-Pin Mini5 G3 B

Download DMA201010R Model

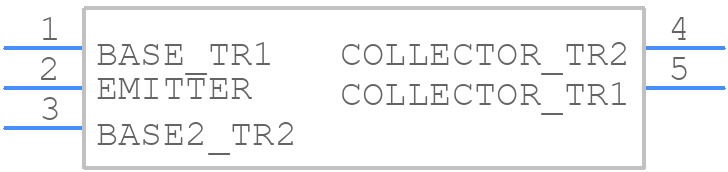

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMA201010R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DMA201010R - Panasonic  - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DMA201010R Details

  • Manufacturer Part Number:

    DMA201010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    210

  • JEDEC-95 Code:

    MO-178AA

  • JESD-30 Code:

    R-PDSO-G5

  • JESD-609 Code:

    e6

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN BISMUTH

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz

DMA201010R Frequently Asked Questions (FAQs)

  • A good PCB layout for the DMA201010R should consider the following: keep the input and output traces separate, use a solid ground plane, and minimize the length of the input traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure reliable operation in high-temperature environments, it's essential to follow proper thermal management practices. This includes providing adequate heat sinking, using a thermally conductive PCB material, and ensuring good airflow around the device. Additionally, consider using a thermal interface material (TIM) between the device and the heat sink.
  • Although the datasheet specifies the recommended operating voltage range, it's essential to note that the input pins can tolerate a maximum voltage of 5.5V, which is higher than the recommended operating voltage. However, it's still recommended to operate the device within the specified voltage range for optimal performance and reliability.
  • To handle ESD protection for the DMA201010R, it's recommended to use a combination of external ESD protection devices, such as TVS diodes or ESD arrays, and follow proper PCB design practices, such as using a ground plane and minimizing the length of input traces. Additionally, consider using a conformal coating to protect the device from moisture and humidity.
  • The recommended storage condition for the DMA201010R is in a dry, cool place with a temperature range of -10°C to 30°C and a relative humidity of 60% or less. It's essential to store the devices in their original packaging or in a similar environment to prevent moisture absorption and damage.
