DMA202010R - Panasonic

Description: DMA202010R, Dual Digital Transistor, PNP -100 mA -50 V, Common Base, 5-Pin Mini5 G3 B

Download DMA202010R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

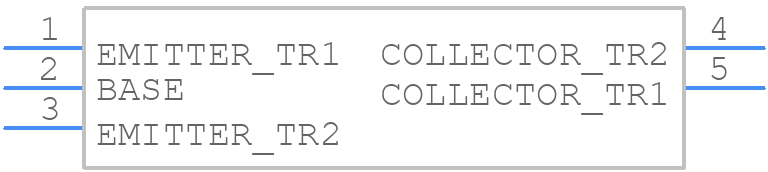

DMA202010R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMA202010R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DMA202010R - Panasonic - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DMA202010R Details

  • Manufacturer Part Number:

    DMA202010R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON BASE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    210

  • JEDEC-95 Code:

    MO-178AA

  • JESD-30 Code:

    R-PDSO-G5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    150 MHz
