HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS
DC Current Gain-Min (hFE):
210
JESD-30 Code:
R-PDSO-G6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
PNP
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
AMPLIFIER
Transistor Element Material:
SILICON
Transition Frequency-Nom (fT):
150 MHz
DMA206010R Frequently Asked Questions (FAQs)
A good PCB layout for the DMA206010R should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and avoid routing high-frequency signals near the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure reliable operation in high-temperature environments, follow these guidelines: use a heat sink with a thermal resistance of 10°C/W or less, ensure good airflow around the device, and consider derating the device's power dissipation according to the temperature derating curve provided in the datasheet.
The maximum allowed voltage on the input pins of the DMA206010R is 5.5V, which is the absolute maximum rating. However, it's recommended to keep the input voltage within the recommended operating range of 3.3V ± 10% to ensure reliable operation.
To handle ESD protection for the DMA206010R, follow these guidelines: use ESD-sensitive handling procedures during assembly, use an ESD-protective packaging, and consider adding external ESD protection devices such as TVS diodes or ESD arrays to the PCB design.
The recommended power-up sequence for the DMA206010R is to apply the power supply voltage (VCC) before applying the input signals. This ensures that the internal biasing and reference circuits are properly initialized before the device starts operating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA206010R Overview

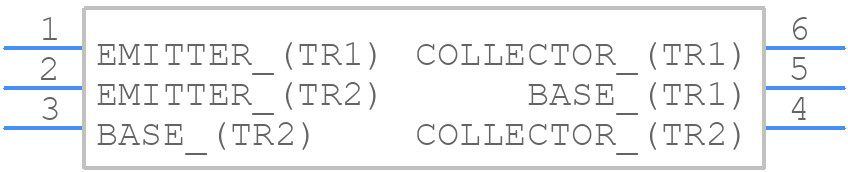

Use the download button to access the DMA206010R schematic symbol, PCB footprint, and 3D model.
