DMA261030R - Panasonic

Description: DMA261030R, Dual Digital Transistor, PNP -100 mA -50 V 47 kΩ, Ratio Of 1, Common Emitter, 5-Pin Mini5 G3 B

Download DMA261030R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

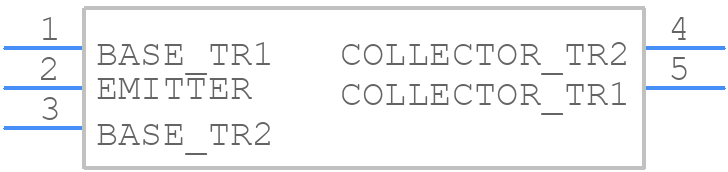

Symbol
DMA261030R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMA261030R - Panasonic PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - Mini5-G3-B
click to zoom
3D Models
DMA261030R - Panasonic - 3D model - SOT23 (5-Pin) - Mini5-G3-B
click to zoom

DMA261030R Details

  • Manufacturer Part Number:

    DMA261030R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JEDEC-95 Code:

    MO-178AA

  • JESD-30 Code:

    R-PDSO-G5

  • Number of Elements:

    2

  • Number of Terminals:

    5

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMA261030R Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Use a secure mounting method, such as screwing or adhesive, and consider adding a vibration-absorbing material like a silicone gel pad between the component and the PCB.
  • Panasonic recommends derating the power by 1.5% per degree Celsius above the maximum operating temperature of 125°C to ensure reliable operation.
  • Yes, but ensure the component is properly sealed and conformal coated to prevent moisture ingress. Panasonic recommends following the IPC-J-STD-001 standard for moisture-sensitive devices.
  • Store the component in a dry, cool place (below 30°C and 60% RH) with minimal exposure to direct sunlight and moisture. Avoid storing in a sealed package for extended periods.
