HALOGEN FREE AND ROHS COMPLIANT, MINI5-G3-B, MO-178, SC-74A, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
160
JEDEC-95 Code:
MO-178AA
JESD-30 Code:
R-PDSO-G5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
PNP
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMA261050R Frequently Asked Questions (FAQs)
Panasonic recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output. The input and output traces should be kept short and away from the power planes to minimize noise and EMI.
To ensure reliability, Panasonic recommends following the derating guidelines for the device, using a heat sink if necessary, and ensuring good thermal conductivity between the device and the PCB. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C.
The maximum allowable voltage for the DMA261050R is 50V, which is the absolute maximum rating. However, the recommended operating voltage is 26V, and exceeding this voltage may reduce the device's lifespan or cause damage.
Yes, the DMA261050R is suitable for switching power supply applications due to its high-frequency characteristics and low ESR. However, the device should be operated within the recommended frequency range and voltage ratings, and proper layout and decoupling should be ensured to minimize noise and EMI.
The ESR of the DMA261050R varies with temperature, and this variation should be considered in the design. Panasonic recommends using the ESR vs. temperature curve provided in the datasheet to determine the ESR at the operating temperature, and adjusting the design accordingly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA261050R Overview

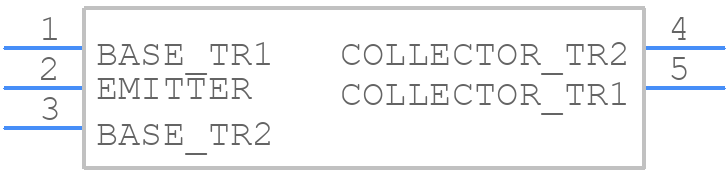

Use the download button to access the DMA261050R schematic symbol, PCB footprint, and 3D model.
