DMA264020R - Panasonic

Description: DMA264020R, Dual Digital Transistor, PNP -100 mA -50 V 22 kΩ, Ratio Of 1, 6-Pin Mini6 G4 B

Download DMA264020R Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

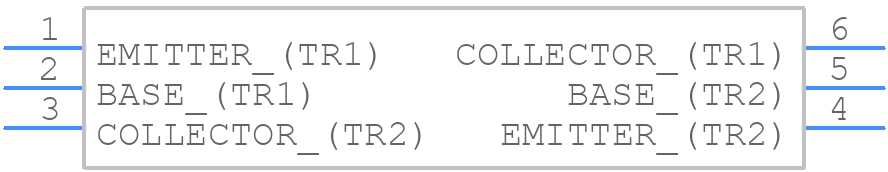

DMA264020R - Panasonic - PCB symbol
click to zoom
PCB Footprints
DMA264020R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - Mini6-G4-B
click to zoom
3D Models
DMA264020R - Panasonic - 3D model - SOT23 (6-Pin) - Mini6-G4-B
click to zoom

DMA264020R Details

  • Manufacturer Part Number:

    DMA264020R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    60

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMA264020R Frequently Asked Questions (FAQs)

  • Panasonic recommends a PCB layout with a thermal pad connected to a large copper area on the bottom layer, and multiple vias to dissipate heat efficiently.
  • Use a secure mounting method, such as screwing or adhesive, and consider adding a vibration-absorbing material like a silicone gel pad between the component and the PCB.
  • Panasonic recommends derating the power by 1.5% per degree Celsius above the maximum operating temperature of 125°C to ensure reliable operation.
  • Yes, but ensure the component is properly sealed and conformal coated to prevent moisture ingress. Panasonic recommends following the IPC-J-STD-001 standard for moisture-sensitive devices.
  • Store the component in a dry, cool place (below 30°C and 60% RH) with minimal exposure to direct sunlight and moisture. Avoid storing in a sealed plastic bag or airtight container.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

DMA264020R Overview

Use the download button to access the DMA264020R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like DMA26, or try a keyword search, such as Small Signal Bipolar Transistors
