DMA266030R - Panasonic

Description: DMA266030R, Dual Digital Transistor, PNP -100 mA -50 V 47 kΩ, Ratio Of 1, 6-Pin Mini6 G4 B

Download DMA266030R Model

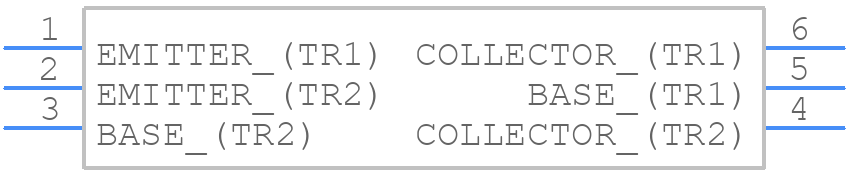

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMA266030R - Panasonic PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - Mini6-G4-B
click to zoom
3D Models
DMA266030R - Panasonic  - 3D model - SOT23 (6-Pin) - Mini6-G4-B
click to zoom

DMA266030R Details

  • Manufacturer Part Number:

    DMA266030R

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    HALOGEN FREE AND ROHS COMPLIANT, MINI6-G4-B, SC-74, 6 PIN

  • ECCN Code:

    EAR99

  • Manufacturer:

    Panasonic Electronic Components

  • Additional Feature:

    BUILT IN BIAS RESISTOR RATIO 1

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    50 V

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR

  • DC Current Gain-Min (hFE):

    80

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity/Channel Type:

    PNP

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMA266030R Frequently Asked Questions (FAQs)

  • Panasonic recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a 50Ω impedance-controlled trace for the clock signal.
  • To ensure reliability, Panasonic recommends following the derating guidelines for the device, using a heat sink if necessary, and ensuring good thermal conductivity between the device and the PCB. Additionally, consider using a thermally conductive adhesive or thermal interface material.
  • While the datasheet specifies a maximum voltage of 3.6V, Panasonic recommends not exceeding 3.3V to ensure reliable operation and to prevent damage to the device.
  • The DMA266030R is not designed to be radiation-hardened, and its performance may be affected in high-radiation environments. Panasonic recommends evaluating the device's performance in the specific radiation environment and considering alternative components if necessary.
  • Panasonic recommends following a systematic troubleshooting approach, starting with verifying the power supply and clock signal integrity. Check for proper PCB layout, signal termination, and decoupling. If issues persist, contact Panasonic's technical support for further assistance.
