HALOGEN FREE AND ROHS COMPLIANT, SMINI5-F3-B, SC-113CB, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
35
JESD-30 Code:
R-PDSO-F5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
NPN
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMA561010R Frequently Asked Questions (FAQs)
Panasonic recommends a 4-layer PCB with a solid ground plane, and a separate power plane for the input and output. The input and output traces should be kept short and away from the power planes to minimize noise and EMI.
To ensure reliability, Panasonic recommends following the derating guidelines for the device, using a heat sink if necessary, and ensuring good thermal conductivity between the device and the PCB. Additionally, the device should be operated within the recommended temperature range of -40°C to 125°C.
Panasonic recommends a soldering profile with a peak temperature of 260°C, a dwell time above 220°C of 30 seconds, and a total process time of 60 seconds. The device should be soldered using a Pb-free solder alloy with a melting point above 217°C.
Yes, the DMA561010R is AEC-Q100 qualified, which means it meets the stringent requirements for automotive applications. However, it's essential to ensure that the device is used within the recommended operating conditions and that the system design meets the necessary safety and reliability standards.
To troubleshoot issues, Panasonic recommends checking the input and output voltages, ensuring proper PCB layout and thermal design, and verifying that the device is operated within the recommended specifications. If the issue persists, contact Panasonic's technical support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA561010R Overview

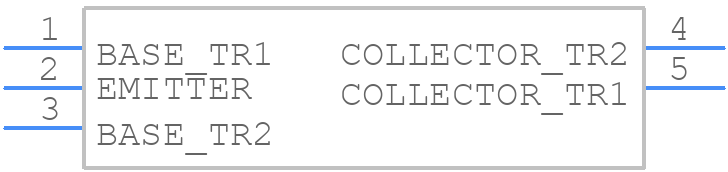

Use the download button to access the DMA561010R schematic symbol, PCB footprint, and 3D model.
