HALOGEN FREE AND ROHS COMPLIANT, SMINI6-F3-B, SC-113DB, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
35
JESD-30 Code:
R-PDSO-F6
JESD-609 Code:
e6
Moisture Sensitivity Level:
1
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Polarity/Channel Type:
PNP
Power Dissipation-Max (Abs):
0.15 W
Surface Mount:
YES
Terminal Finish:
TIN BISMUTH
Terminal Form:
FLAT
Terminal Position:
DUAL
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMA564010R Frequently Asked Questions (FAQs)
A good PCB layout for the DMA564010R should consider the following: keep the input and output traces short and symmetrical, use a solid ground plane, and place decoupling capacitors close to the power pins. Additionally, ensure that the thermal pad is connected to a solid ground plane to improve heat dissipation.
The thermal pad on the DMA564010R should be connected to a solid ground plane on the PCB to improve heat dissipation. During assembly, apply a thin layer of thermal interface material (TIM) to the thermal pad, and ensure the PCB is designed with a thermal relief pattern to prevent solder wicking.
While the datasheet specifies an operating temperature range of -40°C to 125°C, it's essential to note that the device's performance and reliability may degrade above 85°C. It's recommended to design the system to operate within a temperature range of -20°C to 85°C for optimal performance and reliability.
When selecting input and output capacitors for the DMA564010R, consider the following: choose capacitors with a low equivalent series resistance (ESR), high ripple current rating, and a voltage rating that exceeds the maximum input voltage. X7R or X5R ceramic capacitors with a capacitance value of 10uF to 22uF are suitable for most applications.
While the datasheet specifies an input voltage range of 2.5V to 5.5V, it's recommended to operate the device within a range of 3.0V to 5.0V for optimal performance and reliability. Operating the device outside this range may affect its performance, efficiency, and lifespan.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA564010R Overview

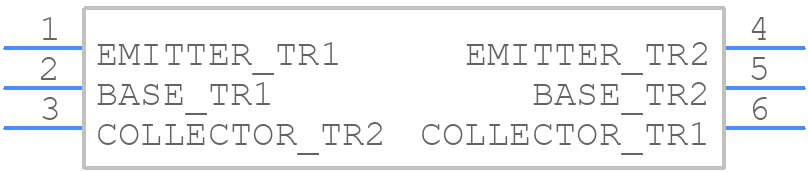

Use the download button to access the DMA564010R schematic symbol, PCB footprint, and 3D model.
