HALOGEN FREE AND ROHS COMPLIANT, SSMINI5-F4-B, SC-107BB, 5 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 4.7
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
COMMON EMITTER, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
80
JESD-30 Code:
R-PDSO-F5
Number of Elements:
2
Number of Terminals:
5
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
PNP
Power Dissipation-Max (Abs):
0.125 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMA961040R Frequently Asked Questions (FAQs)
A good PCB layout for the DMA961040R should ensure that the input and output pins are separated, and the power supply lines are decoupled with capacitors. Additionally, the PCB should be designed to minimize electromagnetic interference (EMI) and radio-frequency interference (RFI). A 4-layer PCB with a solid ground plane and a separate power plane is recommended.
The DMA961040R has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to provide adequate heat dissipation. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the device. The PCB should also be designed to dissipate heat efficiently.
The recommended soldering process for the DMA961040R is a reflow soldering process with a peak temperature of 260°C. The soldering time should be kept as short as possible to prevent damage to the device. A soldering iron should not be used, as it can cause damage to the device's internal components.
The DMA961040R is designed to operate in a variety of environments, including those with high vibration. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent damage or dislodging. Additionally, the PCB should be designed to withstand the vibration and shock.
To troubleshoot issues with the DMA961040R, start by checking the power supply voltage and ensuring that it's within the recommended range. Verify that the input and output signals are correct and that the device is properly configured. Use an oscilloscope to check the signal waveforms and ensure that they're within the specified limits. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA961040R Overview

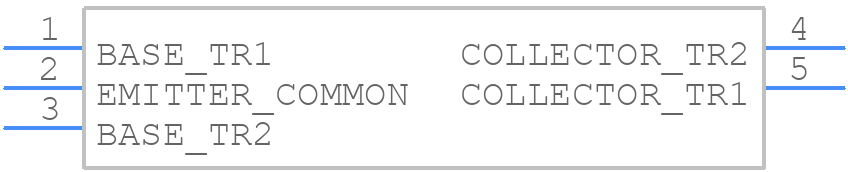

Use the download button to access the DMA961040R schematic symbol, PCB footprint, and 3D model.
