HALOGEN FREE AND ROHS COMPLIANT, SSMINI6-F3-B, SC-107C, 6 PIN
ECCN Code:
EAR99
Manufacturer:
Panasonic Electronic Components
Additional Feature:
BUILT IN BIAS RESISTOR RATIO IS 1
Collector Current-Max (IC):
0.1 A
Collector-Emitter Voltage-Max:
50 V
Configuration:
SEPARATE, 2 ELEMENTS WITH BUILT-IN RESISTOR
DC Current Gain-Min (hFE):
35
JESD-30 Code:
R-PDSO-F6
Number of Elements:
2
Number of Terminals:
6
Package Body Material:
PLASTIC/EPOXY
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
NOT SPECIFIED
Polarity/Channel Type:
PNP
Power Dissipation-Max (Abs):
0.125 W
Surface Mount:
YES
Terminal Form:
FLAT
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Transistor Application:
SWITCHING
Transistor Element Material:
SILICON
DMA964010R Frequently Asked Questions (FAQs)
Panasonic recommends a 4-layer PCB with a solid ground plane, and to keep the signal traces as short as possible. Additionally, it's recommended to use a 50Ω impedance-controlled trace for the clock signal.
To ensure reliability, Panasonic recommends operating the DMA964010R within the specified temperature range (-40°C to 125°C). Additionally, it's essential to follow proper thermal design and heat dissipation techniques, such as using a heat sink or thermal interface material.
Although the datasheet doesn't specify a maximum allowable voltage, Panasonic recommends not exceeding the maximum rating of 6V for the input pins to prevent damage or malfunction.
The DMA964010R is not designed to be radiation-hardened. If you need a radiation-hardened component, you should consider a different part or consult with Panasonic's sales team for a custom solution.
To troubleshoot clock signal issues, check the clock signal frequency, amplitude, and jitter. Ensure the clock signal is within the specified range (25MHz to 100MHz) and meets the recommended signal integrity guidelines. You can also use an oscilloscope to visualize the clock signal and identify any anomalies.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
DMA964010R Overview

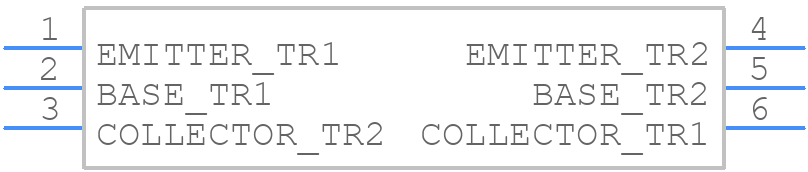

Use the download button to access the DMA964010R schematic symbol, PCB footprint, and 3D model.
