DMC1015UPD-13 - Diodes Incorporated

Description: Trans MOSFET N/P-CH 12V/20V 9.5A/6.8A 8-Pin PowerDI EP T/R

Download DMC1015UPD-13 Model

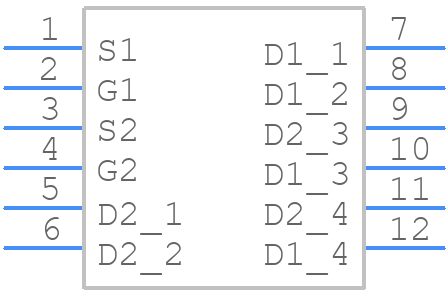

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
DMC1015UPD-13 - Diodes Incorporated PCB footprint - Other - Other - PowerDI5060-8 (Type C)_2022
click to zoom
3D Models
DMC1015UPD-13 - Diodes Incorporated  - 3D model - Other - PowerDI5060-8 (Type C)_2022
click to zoom

DMC1015UPD-13 Details

  • Manufacturer Part Number:

    DMC1015UPD-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    5

  • Avalanche Energy Rating (Eas):

    25 mJ

  • Configuration:

    SEPARATE, 2 ELEMENTS WITH BUILT-IN DIODE

  • DS Breakdown Voltage-Min:

    12 V

  • Drain Current-Max (ID):

    9.5 A

  • Drain-source On Resistance-Max:

    0.017 Ω

  • FET Technology:

    METAL-OXIDE SEMICONDUCTOR

  • JESD-30 Code:

    R-PDSO-F6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Mode:

    ENHANCEMENT MODE

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    N-CHANNEL AND P-CHANNEL

  • Power Dissipation-Max (Abs):

    2.3 W

  • Pulsed Drain Current-Max (IDM):

    13 A

  • Reference Standard:

    AEC-Q101

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Transistor Application:

    SWITCHING

  • Transistor Element Material:

    SILICON

DMC1015UPD-13 Frequently Asked Questions (FAQs)

  • A thermal pad is recommended under the package to improve heat dissipation. A minimum of 2oz copper thickness and a thermal relief pattern are recommended for optimal thermal performance.
  • Ensure that the device is operated within the recommended operating temperature range (-40°C to 125°C). Use a heat sink or thermal interface material to improve heat dissipation, and avoid exceeding the maximum junction temperature (150°C).
  • The maximum current rating for the DMC1015UPD-13 is 1.5A. However, the actual current handling capability may be limited by the PCB design, thermal management, and other system-level factors.
  • Yes, the DMC1015UPD-13 is suitable for high-frequency switching applications up to 100 kHz. However, ensure that the device is properly bypassed and decoupled to minimize electromagnetic interference (EMI).
  • Handle the device with ESD-protective equipment and follow proper ESD handling procedures. Use an ESD-protected workstation and ensure that the device is stored in an ESD-protective package when not in use.
